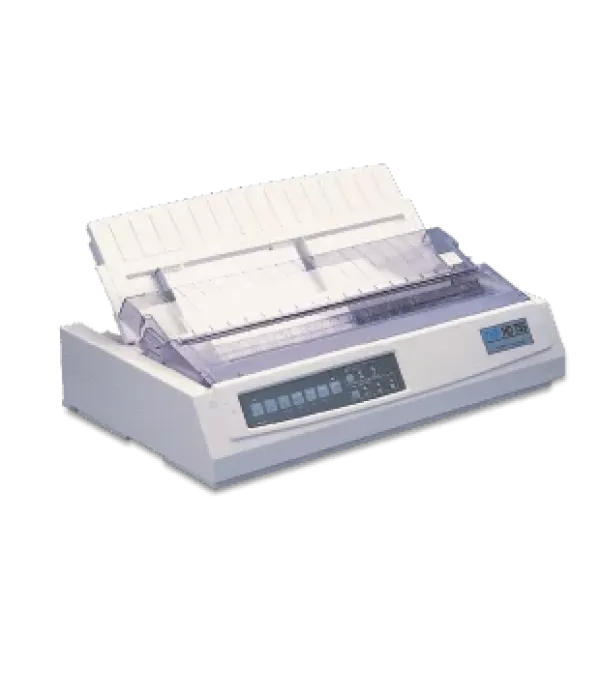

TVS PRINTER HD 745
₹22,120
- Ex GST: ₹18,746
- Brand: TVS
- Product Code: HD 745
- Availability: Out Of Stock
HD 745
HD 745 is a Heavy-duty letter-quality Dot Matrix Printer. It is most suitable for printing invoices, ledgers, and statements in any ERP Application.
ADVANTAGES
- Sturdy 24-wire print head provides for best copy capability.
- Sturdy mechanism, suitable for continuous and heavy-duty printing applications.
- Paper path specially designed for printing multiple copies on preprinted stationery.
- Easy-to-operate front panel with four sturdy buttons.
- Pan-India best-in-class service support availability.
Features
- CODE CAPABILITY: UPTO 1 – 4
- IDEAL FOR ERP APPLICATIONS
- 10,000 POWER-ON HOURS – HIGHER RELIABILITY
- PRINT HEAD LIFE: 200 MILLION CHARACTERS @ 33% PRINT DENSITY IN 25% DUTY CYCLE
- FASTER PRINTING SPEED: 390 CPS
SPECIFICATIONS
| Print Method | Serial Impact Dot Matrix |
| Print Direction | Bi-directional Logic Seeking |
| Print Head | Type 24 Wire |
| Print Width | 136 Column |
| Print Head Life | 200 Million Characters |
| Character Pitch (cpi) | 10, 12, 15 |
| Utility Draft (cps) | 260, 312, 390 |
| Letter Quality (cps) | 87 – 104 |
| Utility Draft Fonts | Gothic |
| Letter Quality Fonts | Courier, Gothic, Prestige, Orator, Roman, Swiss |
| LQ Scalable Fonts | Courier & Gothic (22 to 216 points in 1 pt increments) |
| Resident Barcodes | Code 39, UPC A, UPC E, EAN8, EAN13, Interleaved 2 of 5, Code 128, PostNet |
| Paper Path | Top, Rear, Bottom |
| Tractor Feed | Rear Push |
| Continuous Form Width | 3″ – 16″ |
| Cut Sheets Width | 7.2″ – 14.3″ |
| Paper Thickness Max | Tractor feed: 0.36 mm, Friction feed: 0.44 mm |
| Copy Capability | 1+4 with carbon |
| Fabric-Ink Type | Super high density – seamless |
| Fabric Life | 3 Million Characters |
| Input Buffer | 79 KB |
| Reliability (MTBF) | 10,000 POH |
| Noise Level | 57 dB(A) in normal mode, 52 dB(A) in quiet mode |
| Emulation | Epson LQ, IBM Pro Printer, IBM AGM |
| Standard Interface | Centronics Parallel & USB |
| Optional Interface | RS232C Serial |
| Drivers | Windows 95, 98, 98SE, 2000, Me, XP, Vista, NT 4.0, Linux Redhat |
| Operating Voltage | 198 – 264 V AC |
| Mains Frequency | 50 – 60 Hz |
| Power (Standby) | 10W |
| Operating Temperature | +5 to +45ºC |
| Relative Humidity | 10% to 80% |
| Dimensions (W × H × D) | 552 × 116 × 345 mm |
| Weight | 9.2 kg |
| Best Suited for Printing | Reports, Statements, Proposals, Letters & Correspondence |
1 kg = 2.2 lbs, 1 inch = 2.54 cm
*Max. possible copy capability
**@ Draft 10 cpi
#@ 33% print density and 25% duty cycle
Excluding print head @ 33% print density and 25% duty cycle
#. in lieu of USB
