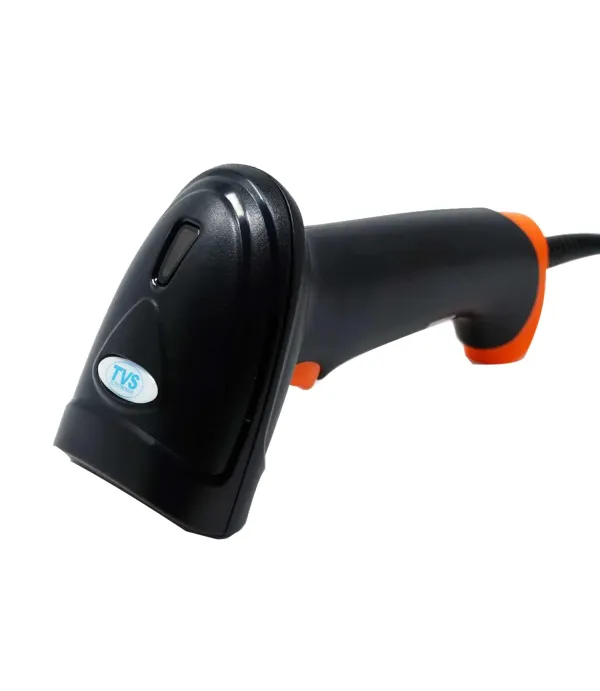

BS-L100 Plus is an affordable handheld Laser scanner that allows the user to easily target the desired barcode and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.

ADVANTAGES

• Reasonable cost and reliable option
• Minimal divergence of Laser beam provides high Depth of Focus on Bar codes
• Reads all standard 1D bar codes

Features

• Plug and Play Design
• Powerful Scanning Performance
• 1.5 M Drop Resistance

SPECIFICATIONS

• Light Source: 650 mm Laser
• Supported Symbologies: EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93, CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI and all 1D bar codes
• Scan Type: Single Laser
• Scan Speed: 300 scans/sec
• Scan Angle: Yaw 55°, Rotation 30°, Pitch 65°
• Precision: >4 mil
• Contrast: >20%
• Depth of Scan Field: 0–280 mm
• Error Rate: Less than 1/5 million
• Interface: USB
• Dimensions: 90 mm × 66 mm × 173 mm
• Weight: 129.5 g
• Cable Length: 2 M
• Operating Temperature: 20°C ~ 50°C
• Relative Humidity: 5% ~ 95%
• Ambient Light (Lux): 3000–8000 Lux
• Drop/Shock Resistance: Withstands a 1.5 m drop onto concrete
• Voltage: DC 5V ± 1%
• Operating Current: 85 mA
• IP Rating: IP51
