TVS BS-I201S WL
₹6,995
- Ex GST: ₹5,928
- Brand: TVS
- Product Code: BS-I201S WL
- Availability: Out Of Stock

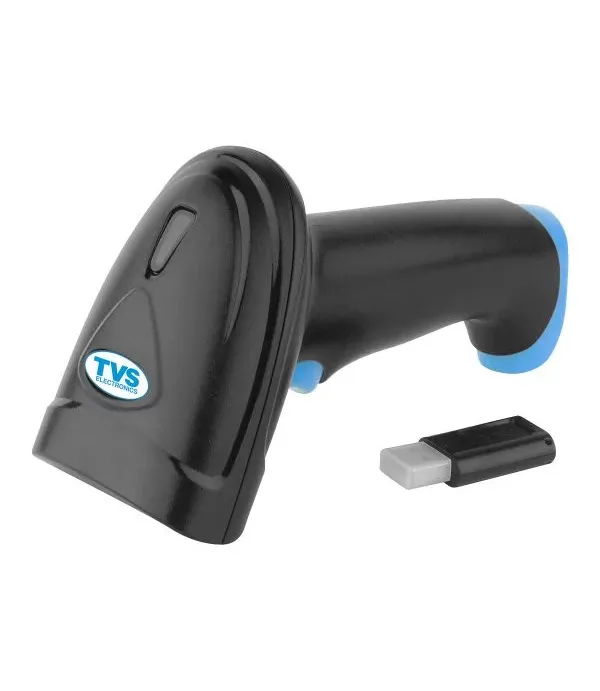

BS-i201s 2D Wireless Barcode Scanner
BS-i201s is a fast, reliable, and precise 2D Wireless Barcode Scanner with an ergonomic grip and rugged design. It is built with advanced imaging technology and a durable button for unmatched scanning performance. It has a resolution of 640×480 and supports both 1D and 2D barcodes.
ADVANTAGES
- Decodes poorly printed or damaged 1D and 2D barcodes
- Lightweight, rugged & handy
- Comfortable & durable scan button
- Drop shock resistance of 3 meters on concrete
- Improved offline & inventory storage modes
- 6 hours of battery backup
Features
- Economical 2D wireless scanner
- 40 meters line of sight – distance covered
- 512K characters storage
SPECIFICATIONS
| Light Source | 617nm LED Aimer, White LED |
|---|---|
| Supported Codes |
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5,
ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11,
Industrial 25, Standard 25, Plessey, Matrix 2 of 5 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micro QR, Micro PDF417, Hanxin Code |
| Resolution | 640×480 |
| Scan Mode | Manual / Continuous / Automatic Induction Scanning |
| Scan Speed | 150 scans/sec |
| Scan Angle | Yaw ±55°, Rotation 360°, Pitch ±55° |
| Precision | ≥5mil |
| Contrast | ≥20% |
| Depth of Scan Field |
EAN13: 50–200mm (13mil) QR: 25–240mm (20mil) PDF417: 30–130mm (6.67mil) |
| Error Rate | 1 in 5 million |
| Interface | USB-HID |
| Communication Mode |
Pairing Dedicated Receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 |
| Transmission Distance | 30–50 meters (open distance) |
| Storage Mode |
Offline Storage Mode: Automatically stores data when out of range. Capacity: 512,000 characters Inventory Storage Mode: Manual inventory mode. Capacity: 512,000 characters |
| Pairing Mode |
One to One: One scanner pairs with one receiver One scanner can also pair with a Bluetooth mobile device |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Dimensions | 90mm × 66mm × 173mm |
| Weight | 130g |
| Cable Length | 1.2M |
| Drop Shock Resistance | 3 meters on concrete (multiple drops) |
| Material | ABS + PC |
| Voltage | DC 5V ±5% |
| Operating Current | ≥26mA (when scanning) |
| Battery Working Time | 6 hours |
| Lithium Battery | 1400mAh |
| Standby Current | 0mA (Battery power cut off) |
| Charging Time | 3.5 hours |
| Charge Mode | Square USB charging cable, plug straight charge |
