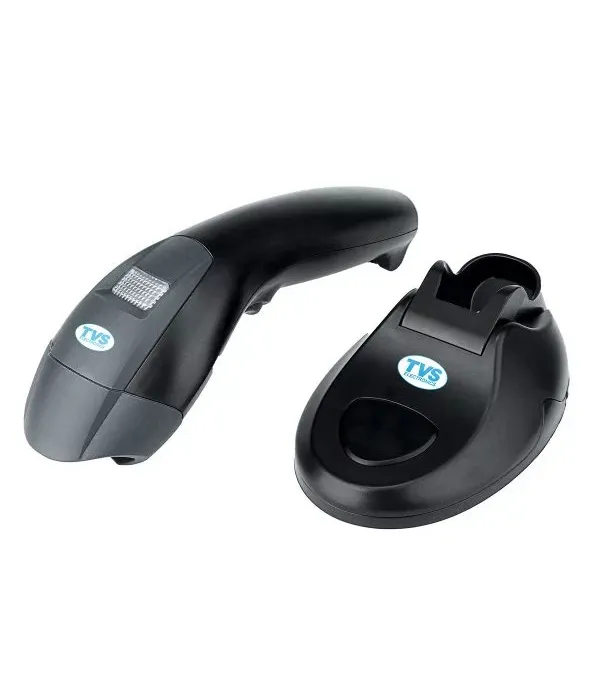

It is a faster, rugged, and handy 2D Bluetooth Wireless Scanner with an easy charging cradle designed for extended hours of barcode scanning. It is easy to use and designed for multiple business needs. Powerful to decode poorly printed or damaged 1D and 2D barcodes and comes with 3 Metres drop resistance.

ADVANTAGES

• Easy Charging Cradle
• Designed with an ergonomic grip
• Comfortable & durable scan button
• High-scanning speed of 300 scans/sec
• Drop Shock Resistance of 3 meters on concrete

Features

• 300 scans/sec
• 40 meters line of sight – distance covered
• Easy charging via cradle
• 512K characters storage

SPECIFICATIONS

• Light Source: 617nm LED aimer, White LED
• Supported:
  • 1D: code128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleave 2 of 5, code 39, code 93, code 32, codabar, matrix 2 of 5, Industrial 25, IATA 25, MSI plessey, GS1 databar, plessey, Febraban, Composite
  • 2D: QR code, micro QR, Data matrix, PDF 417, micor PDF 417, Aztec, Hanxin, Maxicode, Dotcode, Chinese direct transmission
• Scan type: Image CMOS
• Resolution: 640*480
• Scan mode: Manual / Continuous / Automatic scintillation
• Scan speed: 300 scans/sec
• Scan angle: yaw 45°, rotation 360°, pitch 45°
• Precision: ≥5mil
• Contrast: ≥10%
• Depth of scan field:
  • EAN13 35mm-330mm (13mil)
  • QR 20mm-160mm (20mil)
  • PDF 417 60mm-90mm (6.67mil)
• Error rate: 1/5 million
• Interface: USB HID, USB COM
• Communication mode: Paired dedicated receiver; 2.4G communication; paired mobile Bluetooth devices; Bluetooth BLE 4.0
• Transmission distance: 30-50M (open yard)
• Storage mode:
  • Offline storage mode: when the scanner exits the connection range, the data is automatically stored; storage capacity is 512000 characters
  • Inventory storage mode: scanner can enter inventory mode
• Pairing Mode: "one to one: One scanning gun pairs to one receiver, One scanner paired with Bluetooth mobile device."
• Operating temperature: ~20℃ to 50℃
• Storage temperature: ~40℃ to 70℃
• Relative humidity: 0%~95%
• Dimensions: 86.5mm x 137mm x 168mm
• Weight: 279g
• Cable length: 1.2 m
• Drop shock resistance: Multiple times 3 mtr on concrete
• Material: ABS + PC
• Voltage: DC5V±5%
• Operating current: 280mA
• Battery working time: 6h
• Lithium battery: 1400 mAh
• Standby current: 0 mA
• Charging time: 3.5hrs
• Charge mode: Contact the charging
