Product Description

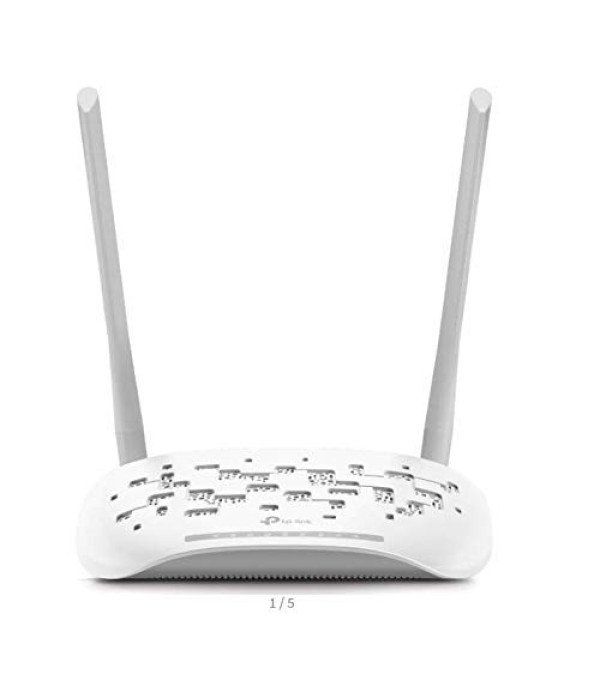

Bring Home Fiber-to-the-Home! TP-Link’s N300 Wireless GPON router is a Gigabit Passive Optical Network (GPON) terminal, the ideal Fiber-to-the-Home (FTTH) solution. Enjoy a high-speed internet connection via the GPON port or wireless speeds of 300Mbps. The XN020-G3V is the perfect terminal for future-oriented service, with full capabilities for FTTH deployment.

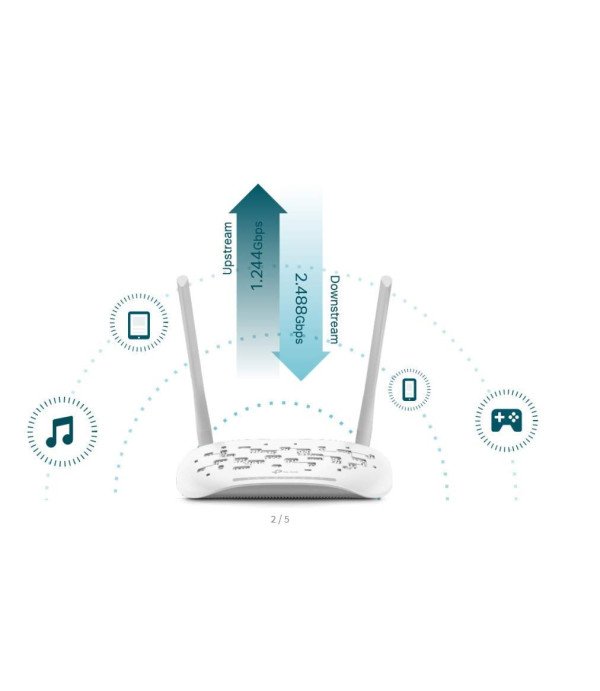

High-Speed GPON Service compliant with the ITU-T G.984 GPON standards, XN020-G3v supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1,000Mbps LAN port and a 10/100Mbps LAN port, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.

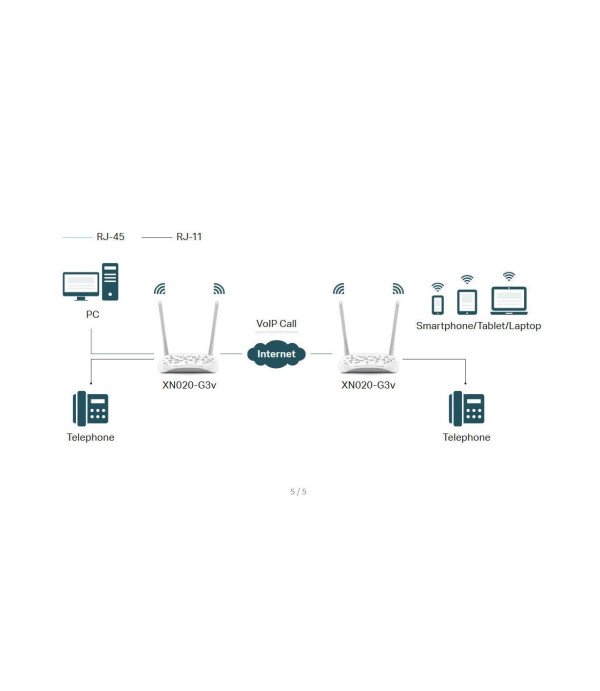

All-in-One Device: With a GPON modem, 300Mbps wireless AP, 2-port Switch, and 1-port FXS, the XN020-G3v is everything your home or office needs to be fully connected.

Specifications

• Type: Wireless With Modem
• Installation Features: Works only with GPON Networks; check with your ISP before ordering
• Model: XN020-G3v Wireless N Gigabit VoIP GPON
• In The Box: GPON Router XN020-G3v, RJ45 Ethernet Cable, Quick Installation Guide, Power Adapter
• Color: White
• Brand: TP-Link
• Net Quantity: 1

Operating Conditions

• Operating Humidity: 10%~90% non-condensing
• Temperature: 0°C~40°C (32°F~104°F)

Power

• Power Supply: 12V/0.6A

Supported Protocols

• Standard IEEE: IEEE 802.3, IEEE 802.3u, 802.3ab

Network Features

• Frequency: 2.4 GHz
• Frequency Band: Single Band
• Wireless Speed: 300 Mbps
• Antennae: External

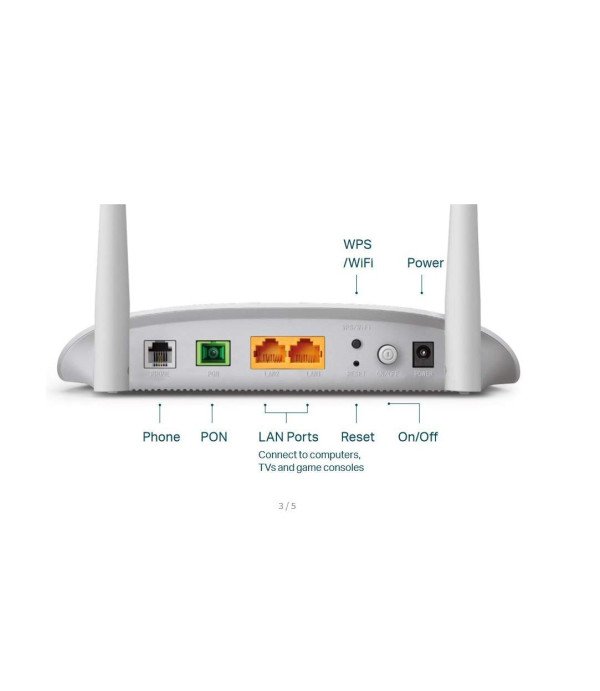

• Number of LAN Ports: 2
• Number of USB Ports: 0
• WAN: PPPoE, Dynamic IP, Static IP, Bridge
• LAN: 2 x Gigabit LAN Ports
• Number of Antennae: 2
• Antennae Capacity: 2X2, 2.4G 5dBi

Security

• Firewall: NAT Firewall, SPI Firewall
• VPN: Support up to 10 IPSec VPN tunnels

Dimensions

• Height: 36.2 mm
• Width: 181.5 mm
• Depth: 125.7 mm
• Weight: 540 g

Warranty

• Service Type: NA
• Covered in Warranty: Manufacturing Defects
• Not Covered in Warranty: Physical Damage
• Warranty Summary: 1 Year Domestic Manufacturer Warranty
