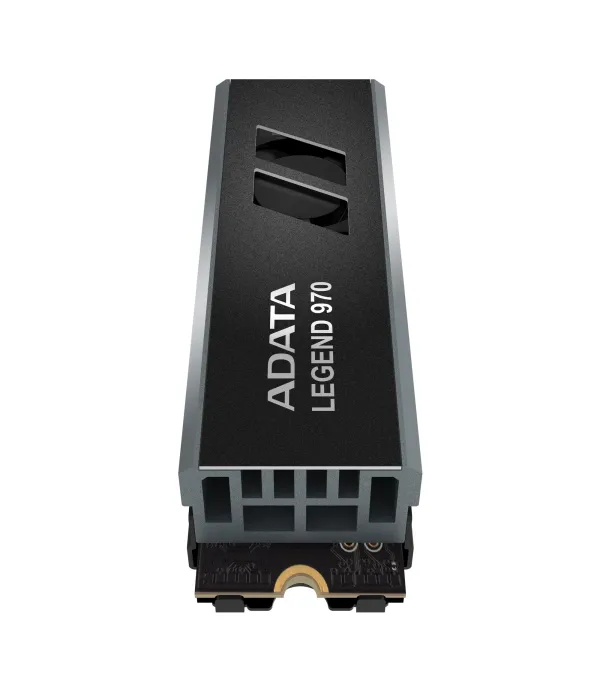

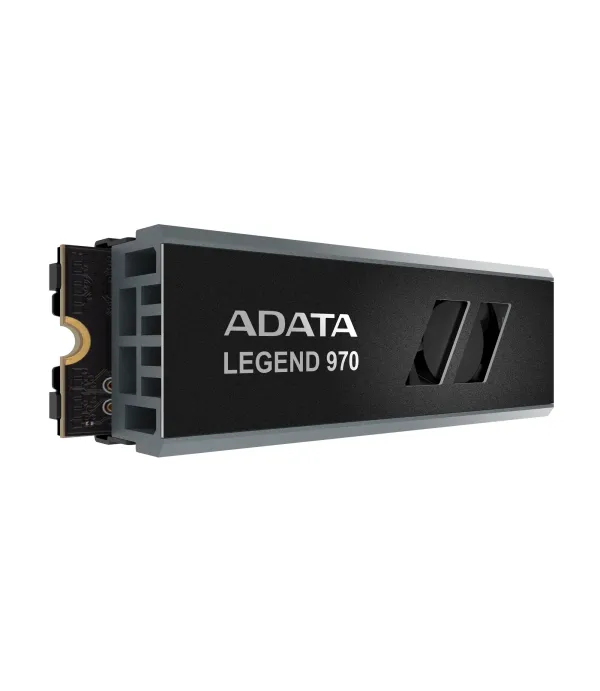

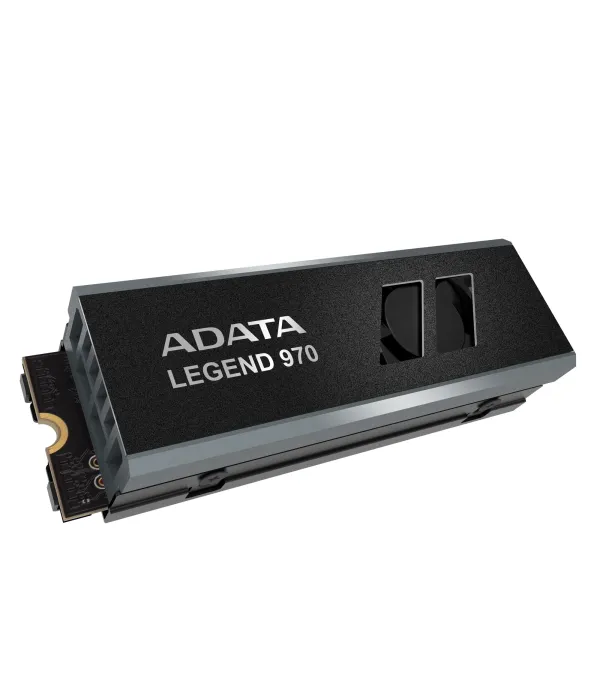

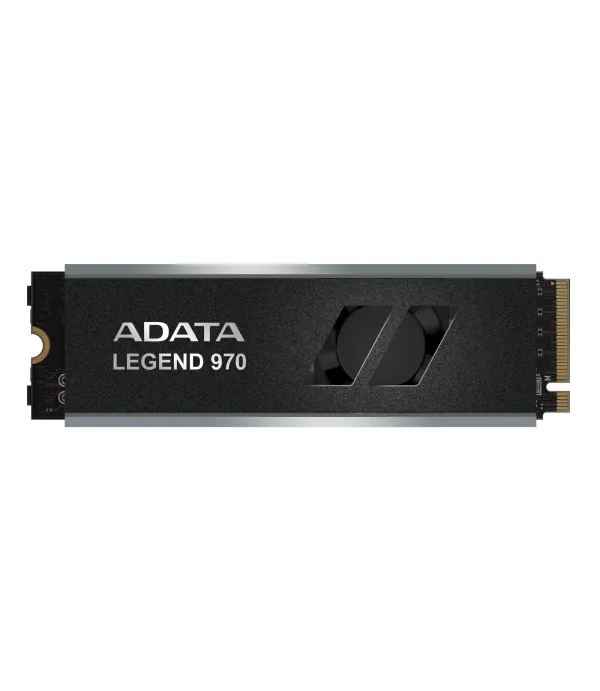

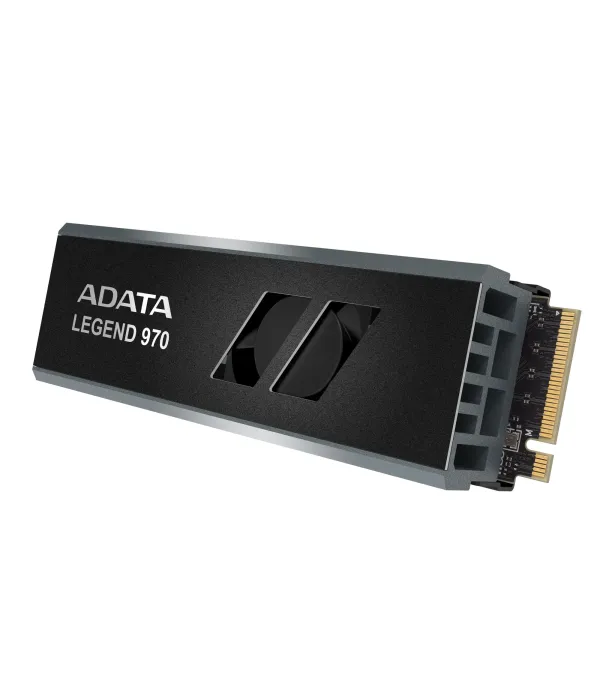

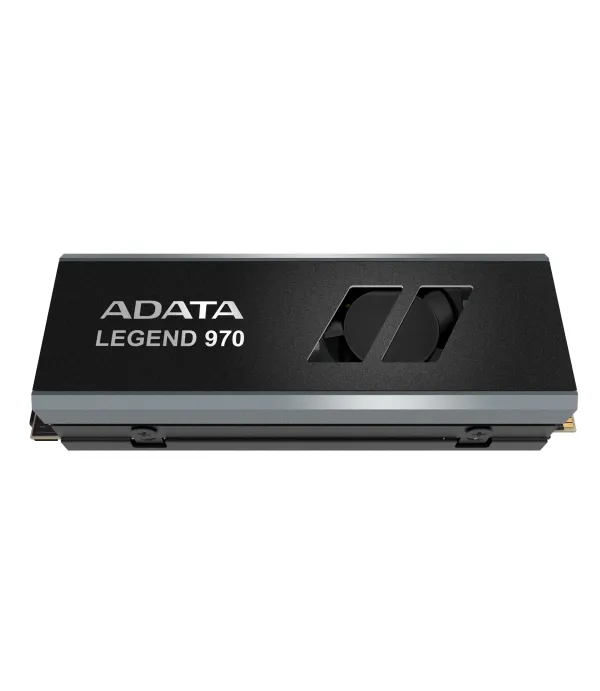

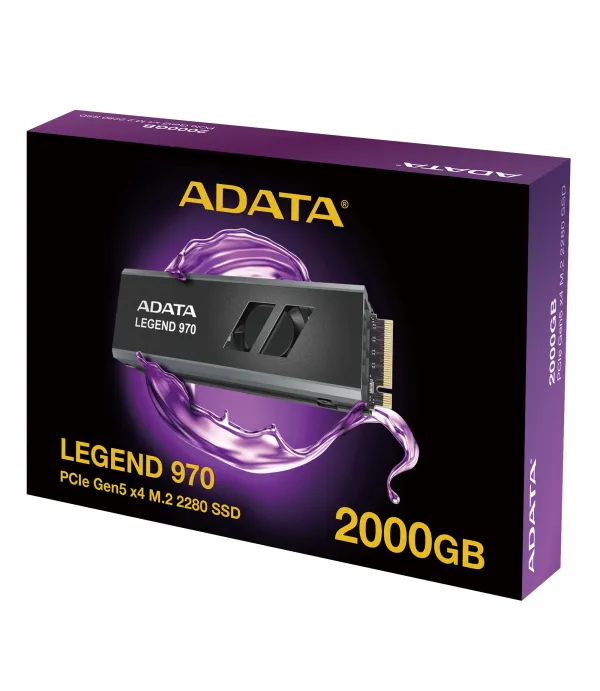

SSD 2TB LEGEND 970 GEN5 NVME
₹0
- Ex GST: ₹0
- Brand: Adata
- Product Code: SLEG-970-2000GCI
- Availability: Out Of Stock
Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.
Unreal Performance

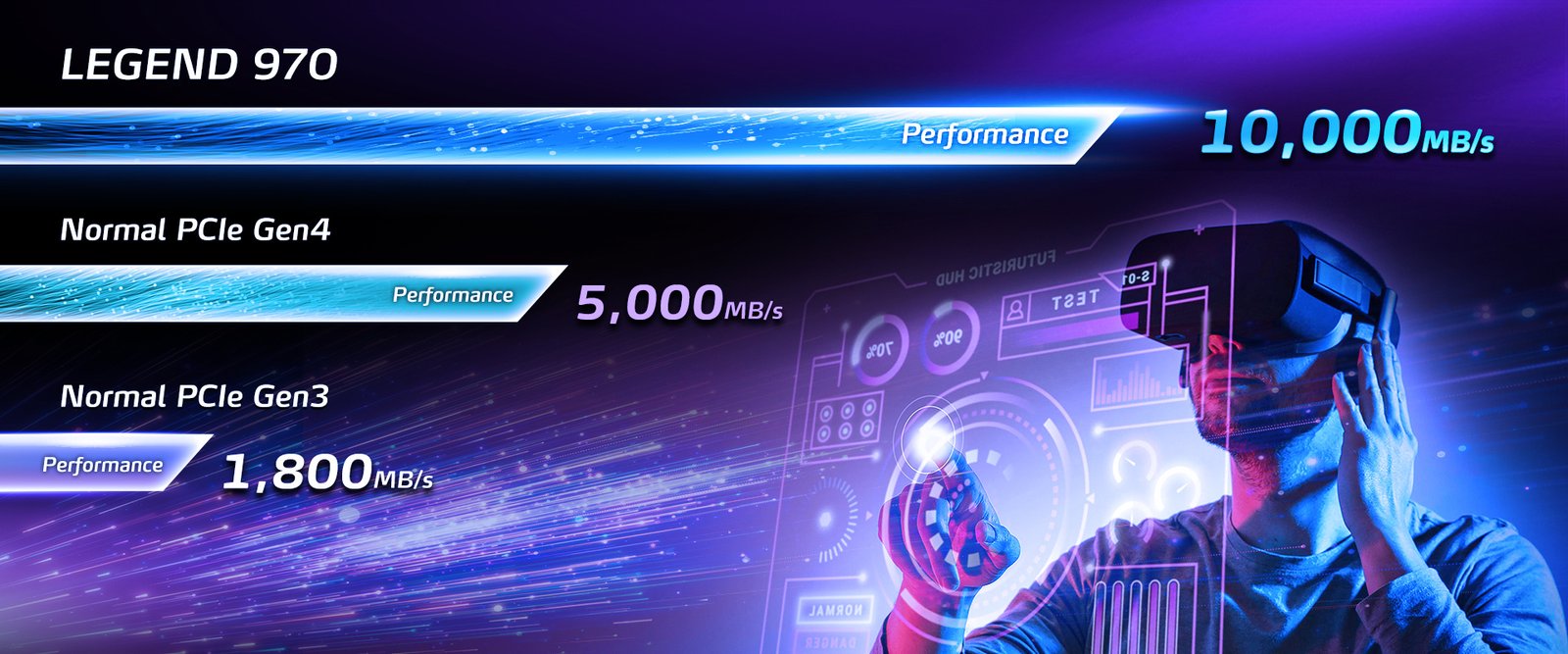

Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.
Experts of Patented Heat Dissipation

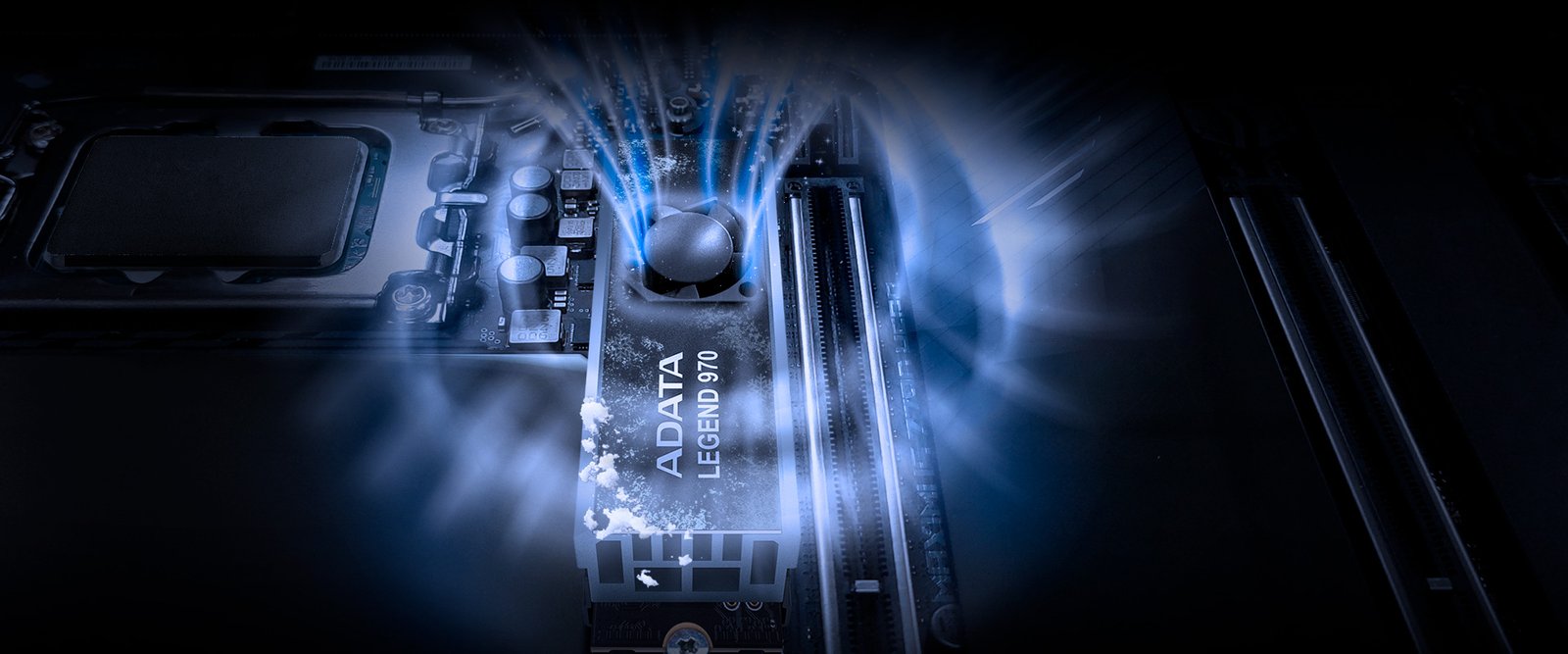

When high efficiency is required, leave it to the professionals! The LEGEND 970 adopts dual-layer extruded aluminum fins¹ to create a dense air duct to divert hot and cold air. When heat is conducted upward, a built-in micro fan is used to remove thermal energy. This unique "active heat dissipation" design delivers significantly cooler temperatures than a fanless heatsink by 10%².
Surface Crystallization Improve Heat Dissipation
The LEGEND 970's aluminum alloy fins are treated with surface crystallization, which utilizes its physical properties to increase the overall air contact area and maximize the effectiveness of its air cooling system.

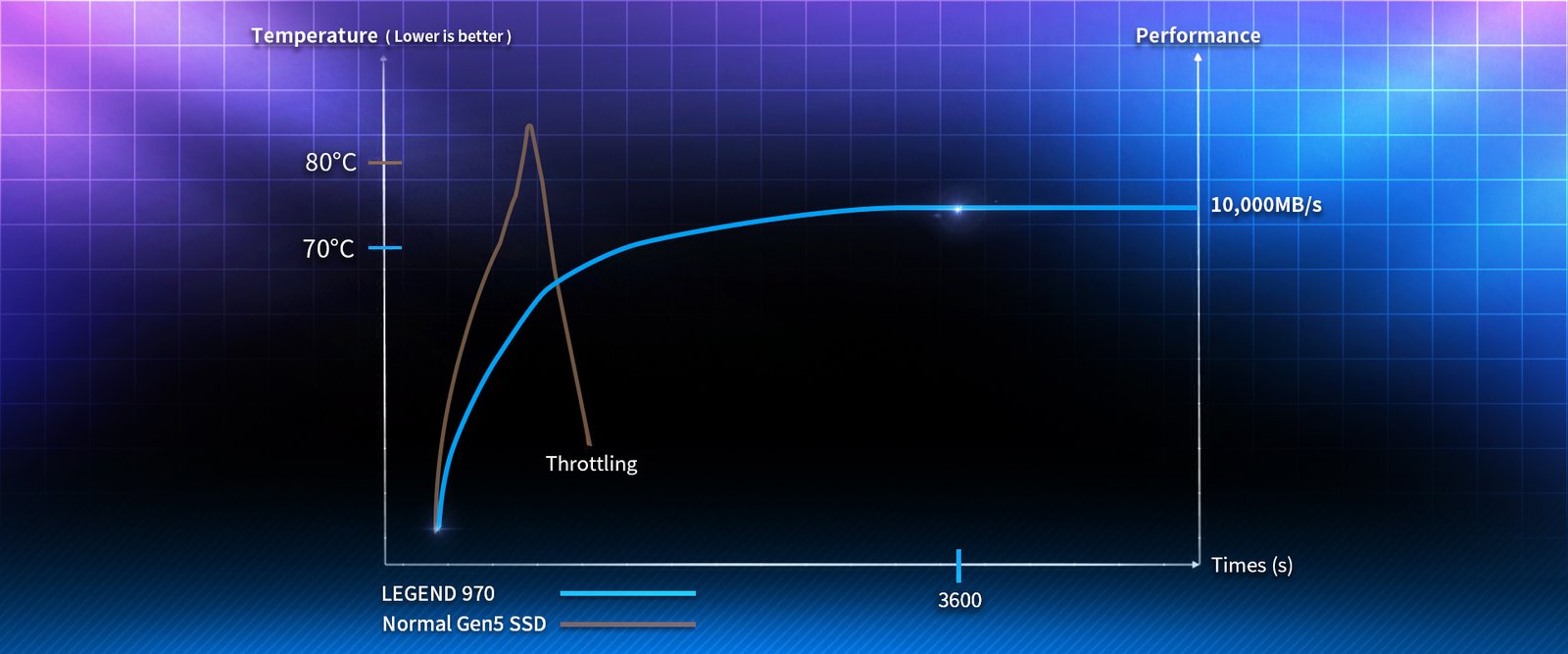

QuiKTIPS : Never Experience Throttling Again
High-speed PCIe 5.0 transmission requires powerful heat dissipation. If heat is not dissipated quickly, data read/writes speeds will be adversely affected and the drive itself crashing is a possibility. The LEGEND 970's active heat dissipation mechanism withstands high temperature test and can maintain stable performance even during long bouts of high speed operation.
QuiKTIPS : Active Cooling Analysis

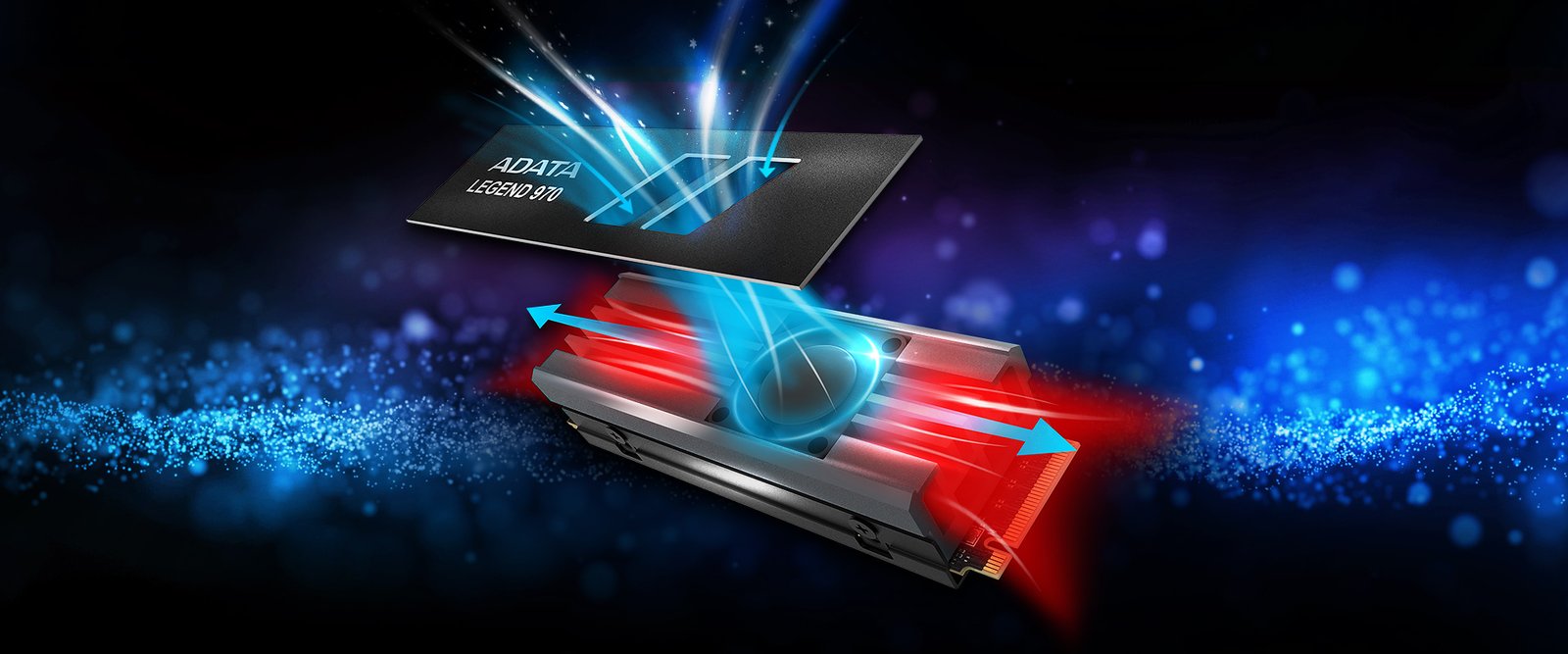

How does active cooling work? Active cooling works by using a tightly adhered heat dissipation pad and a metal heat dissipator to transfer heat from the SSD. The double-layered aluminum fins help facilitate the heat transfer process. Additionally, a built-in fan draws cold air from openings on the nameplate and directs it towards the aluminum fins. The hot and cold air meet, and the rotation of the fan quickly expels the heat from both sides of the aluminum fins. This design provides superior heat dissipation compared to fanless heatsinks.
High Quality Memory Components
Strict selection of 232-layer 3D flash memory gives the LEGEND 970 a capacity of up to 2000GB and it utilizes a variety of data protection and correction technologies to increase total bytes written (TBW) and durability to meet various high-load requirements.
Superior Technology
LEGEND 970 leverages the advantages of a SLC cache algorithm and DRAM Cache Buffer while featuring 4K random read/write IOPS up to 1,400K/1,400K, further improving the efficiency of multi-file processing. The LEGEND 970 also adopts a LDPC (Low Density Parity Check Code) error correction mechanism and AES 256-bit high-level encryption technology to ensure the accuracy of data transmission and the security of files.
ADATA LEGEND 970 PCIe Gen5 x4 SSD
The ADATA LEGEND 970 is engineered for the next-gen user experience with blazing PCIe Gen5 x4 interface, active cooling, and exceptional durability. With sequential read/write speeds of up to 10,000MB/s, patented dual-layer active cooling, and top-tier 232-layer 3D NAND, this SSD is perfect for heavy workloads, high-speed transfers, and performance-demanding gaming or content creation tasks.
Key Features
- PCIe Gen5 x4 interface with NVMe 2.0 support
- Up to 10,000MB/s sequential read and write speeds
- Active cooling system with dual-layer aluminum heatsink and fan
- Surface crystallization improves heat transfer
- No throttling under continuous high-speed operation
- Backwards compatible with PCIe Gen4 and Gen3 platforms
- High-performance 232-layer 3D NAND for long lifespan and durability
- Advanced error correction with LDPC and AES 256-bit encryption
- Supports SLC caching and DRAM Cache Buffer
- 5-year limited warranty
Specifications
Capacity: 1000GB / 2000GB
Form Factor: M.2 2280
NAND Flash: 3D NAND (232-layer)
Controller: Phison PS5026-E26
Dimensions (L x W x H): 80.6 x 24.2 x 17.9mm / 3.17 x 0.95 x 0.7inch
Weight: 57.1g / 2.01oz
Interface: PCIe Gen5 x4
Sequential Read (Max): Up to 10,000MB/s*
Sequential Write (Max): Up to 10,000MB/s*
4KB Random Read IOPS (Max): Up to 1,400K*
4KB Random Write IOPS (Max): Up to 1,400K*
Operating Temperature: 0°C - 70°C
Storage Temperature: -40°C - 85°C
Shock Resistance: 1,500G / 0.5ms
MTBF: 1,600,000 hours
Terabytes Written (TBW): 1,400TB**
Warranty: 5-year limited warranty***
Remarks
- * Compatible with Intel and AMD platforms that support PCIe Gen5 for optimal performance. Actual results may vary depending on system configuration.
- * Backwards compatible with PCIe Gen4 and Gen3 platforms.
- ** TBW is the minimum guaranteed endurance.
- *** Disassembling or removing the pre-installed heatsink will void the warranty.
- Test System: ASUS Z790 STRIX E-Gaming WIFI, Intel i7-13700K, 32GB DDR5-5200
- Visit ADATA Warranty Support for more details.
