Model

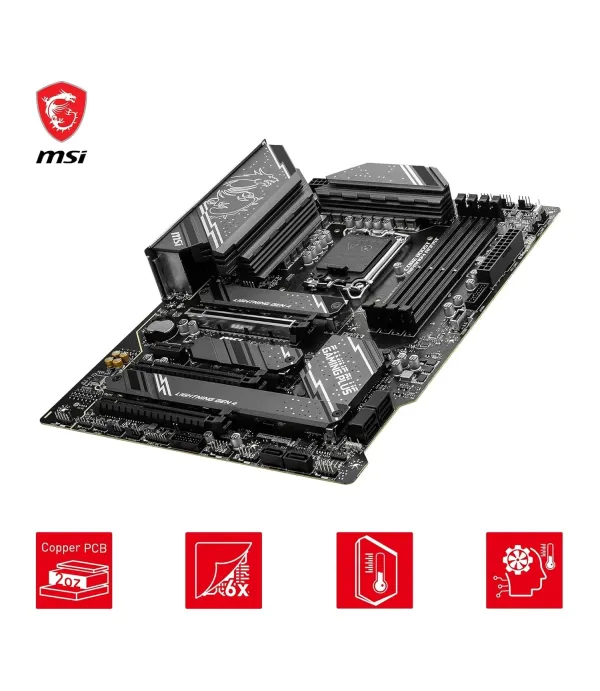

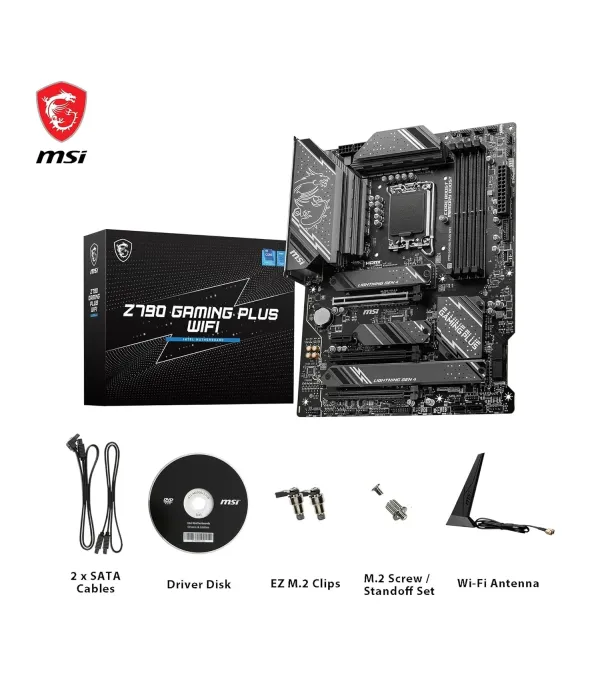

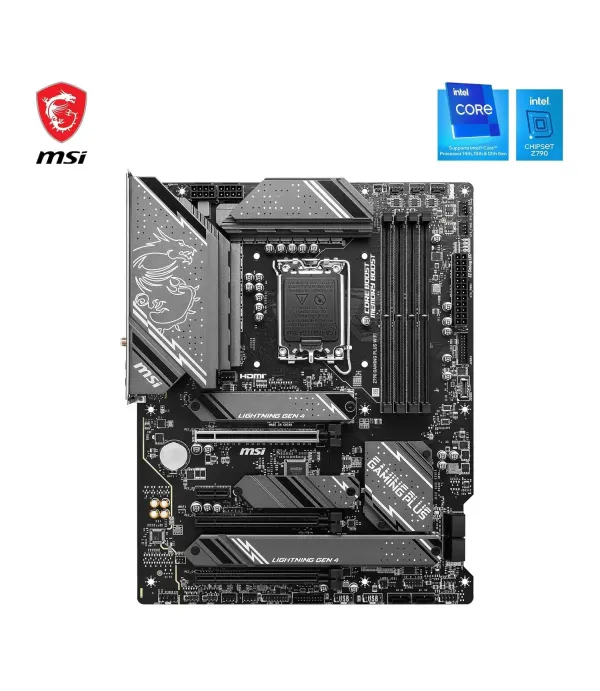

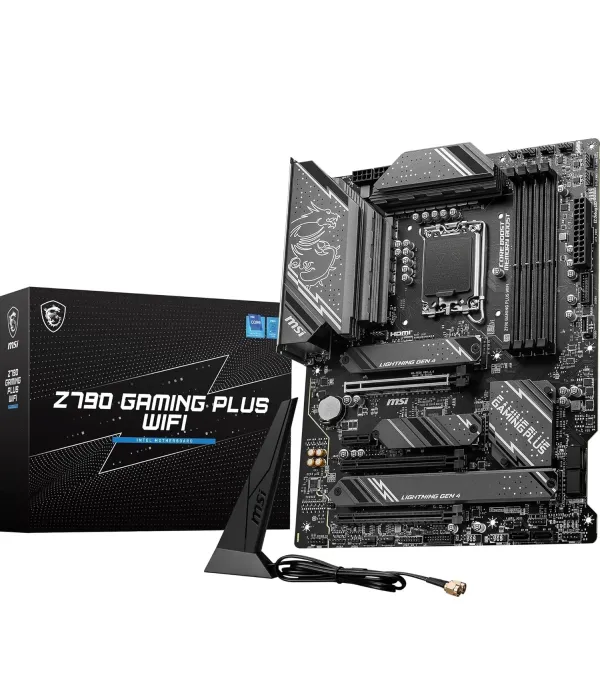

Z790 GAMING PLUS WIFI

Chipset

INTEL Z790

CPU Support

Supports Intel® Core™ 14th, 13th, and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor, and Intel Processor 300(T)

Socket: LGA 1700

Memory

4x DDR5 slots, Maximum Memory Capacity 192GB

Memory Support: 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. Overclocking Frequency:

• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™

Supports HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Supports DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

3x PCI-E x16 slots

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

4x M.2 Slots

• M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
• M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
• M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G Ports

RAID

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA and M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel® 2.5Gbps LAN

Wireless / Bluetooth®

Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/b/g/n/ac/ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Internal I/O

1x Power Connector (ATX_PWR)

2x Power Connector (CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector (JDASH)

2x Addressable V2 RGB LED connectors (JARGB_V2)

2x RGB LED connectors (JRGB)

1x TPM pin header (Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C port

1x USB4 card connector (JTBT_U4_1, supports RTD3)

LED Features

4x EZ Debug LED

Back Panel Ports

Keyboard / Mouse

DisplayPort

USB 2.0

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

Audio Connectors

Flash BIOS Button

USB 2.0

HDMI™ 2.1 Port

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

USB 3.2 Gen 2 10Gbps Type-A

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension

ATX 243.84mm x 304.8mm

Warranty

3 Years

Note

*** Features, Price, Specifications are subject to change without notice.
