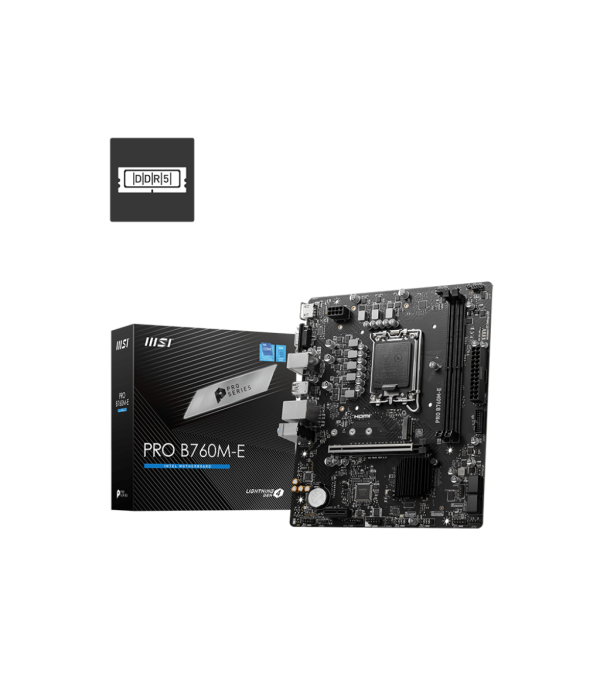

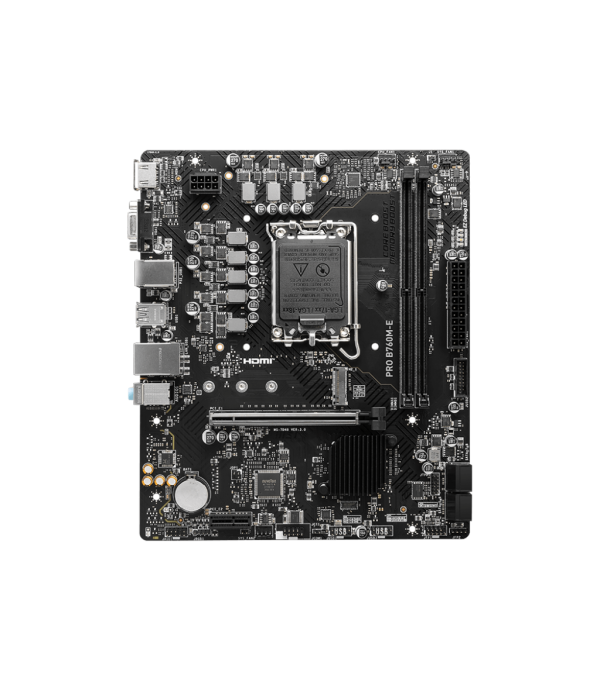

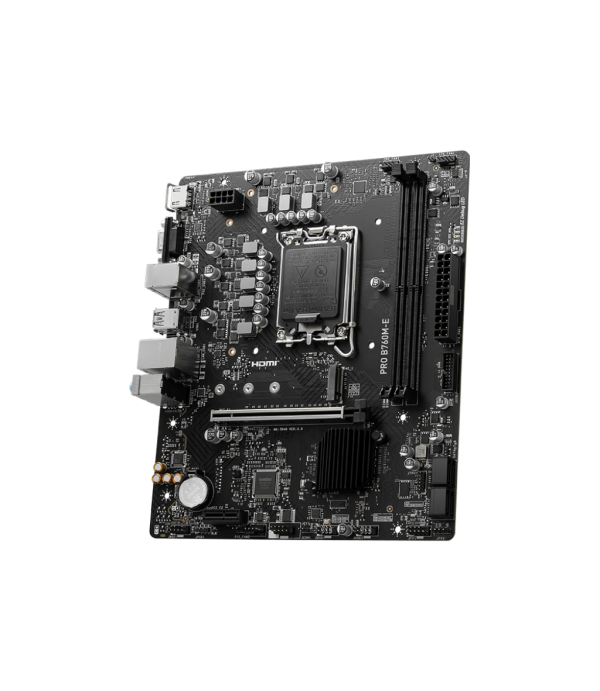

Motherboard for Intel® Core™ 14th/13th/12th Gen Processors

Chipset: INTEL B760

CPU: Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Memory:

• Type: DDR5
• Number of Slots: 2
• Maximum Memory Capacity: 128GB
• Max. Overclocking Frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5600+ MHz
• Supports: Intel® XMP 3.0 OC, Dual-Channel mode, non-ECC, un-buffered memory

Onboard Graphics:

• HDMI™: 1x HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
• VGA: 1x VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
• Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots:

• PCI-E x16 Slot: 1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0 supports up to x16 from CPU)
• PCI-E x1 Slot: 1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0 supports up to x1 from Chipset)

Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage:

• M.2 Slot: 1x M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• SATA: 4x SATA 6G (SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot)

RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB:

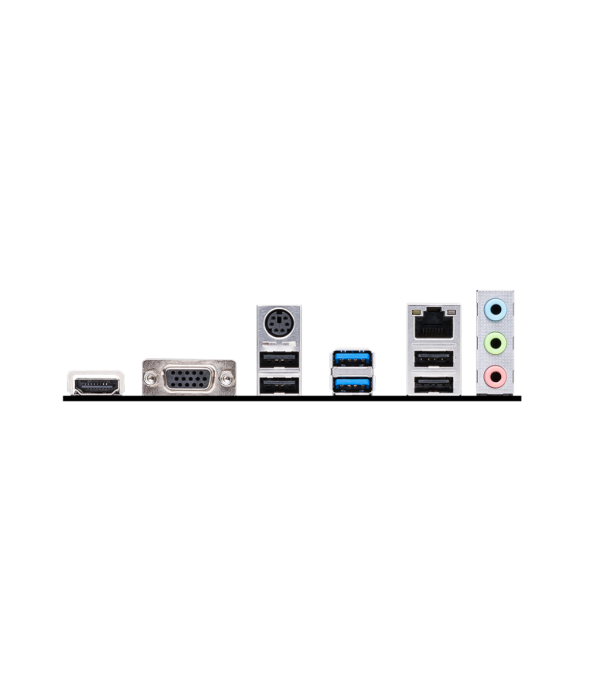

• Rear: 4x USB 2.0, 2x USB 5Gbps Type A
• Front: 4x USB 2.0, 2x USB 5Gbps Type A

LAN: Realtek® RTL8111H Gigabit LAN

Internal IO:

• 1x Power Connector (ATX_PWR)
• 1x Power Connector (CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports

LED Feature: 4x EZ Debug LED

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
