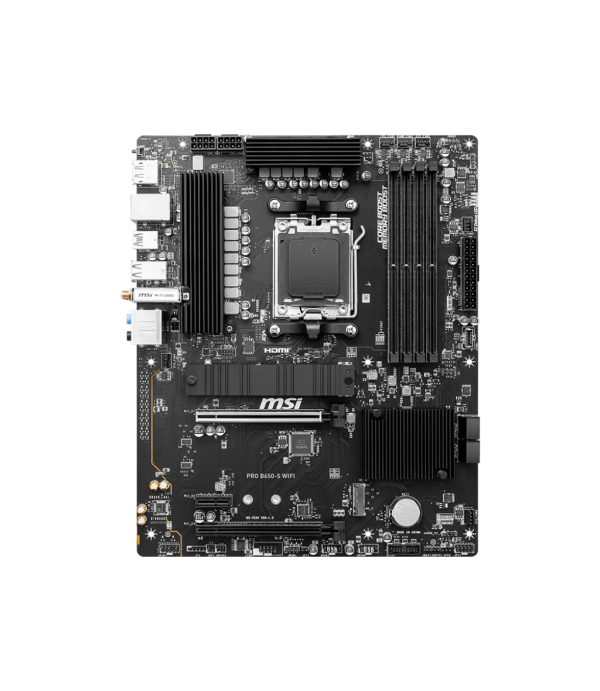

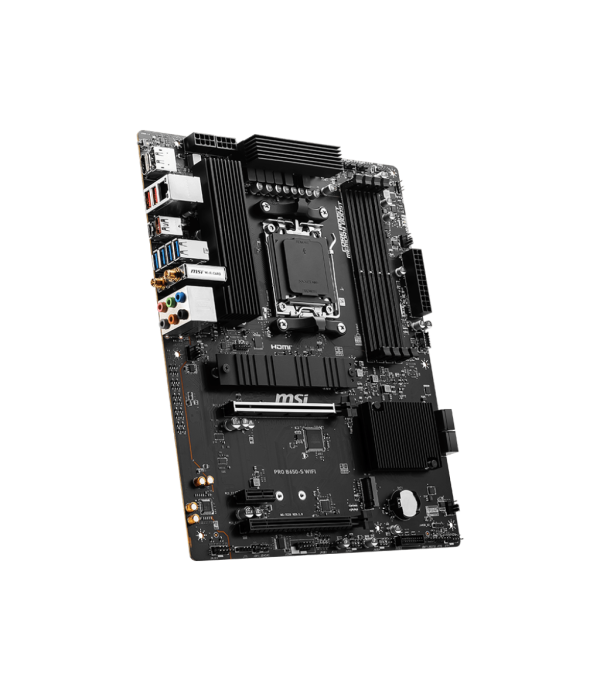

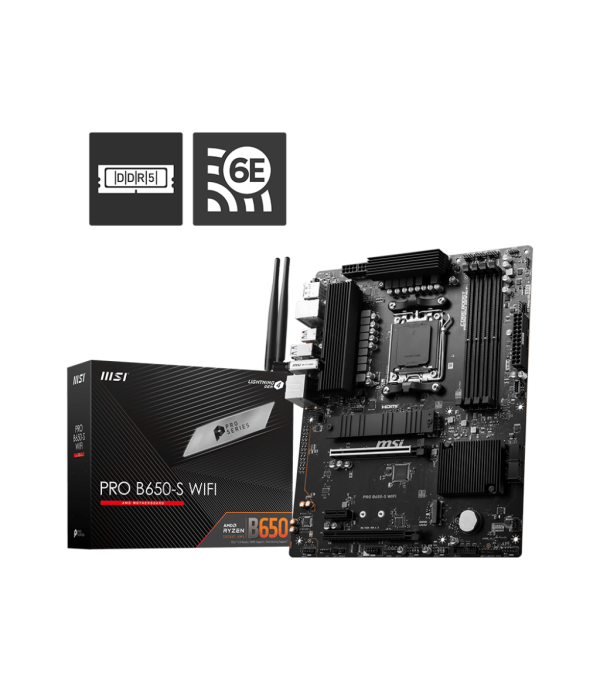

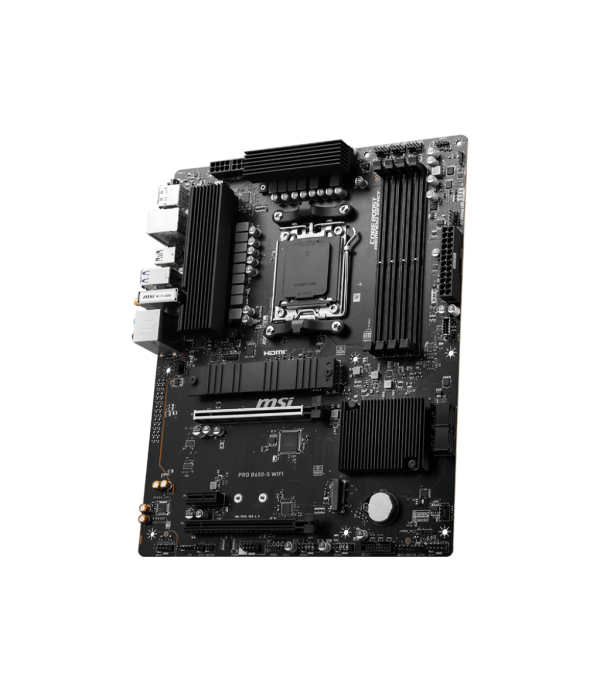

MSI PRO B650-S WIFI Motherboard

Model: PRO B650-S WIFI

Chipset: AMD B650

CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors, Socket AM5

Memory:

• 4 x DDR5 DIMM sockets, Maximum Memory Capacity 192 GB
• Memory Support: DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO

Onboard Graphics:

• 1 x HDMI™ port, Support HDMI™ 2.1, maximum resolution of 4K 60Hz* (Available only on processors featuring integrated graphics.)
• 1 x DisplayPort, Supports DP1.4, maximum resolution of 4K 60Hz*

Expansion Slots:

• 2 x PCI-E x16 slots
• 1 x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Multi-GPU: AMD MULTI-GPU Support

Storage:

• 2 x M.2 connectors
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
• 4 x SATA 6G connectors

RAID: Supports RAID 0 and RAID 1 for SATA storage devices and M.2 NVMe storage devices

USB:

• 4 x USB 2.0 (Front)
• 4 x USB 3.2 Gen1 Type A (Rear)
• 2 x USB 3.2 Gen1 Type A (Front)
• 3 x USB 3.2 Gen2 Type A (Rear)
• 1 x USB 3.2 Gen2 Type C (Front)
• 1 x USB 3.2 Gen2x2 Type C (Rear)

LAN: Realtek® 8125BG 2.5G LAN

Wireless / Bluetooth:

• AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/b/g/n/ac/ax
• Supports Bluetooth® 5.3**

Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Internal I/O:

• 1 x Power Connector (ATX_PWR)
• 2 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 4 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Com Port (JCOM)
• 1 x Tuning Controller connector (JDASH)
• 2 x Addressable V2 RGB LED connector (JARGB_V2)
• 2 x RGB LED connector (JRGB)
• 1 x TPM pin header (Support TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 3.2 Gen1 Type A ports
• 1 x USB 3.2 Gen2 Type C ports

LED Feature: 4 x EZ Debug LED

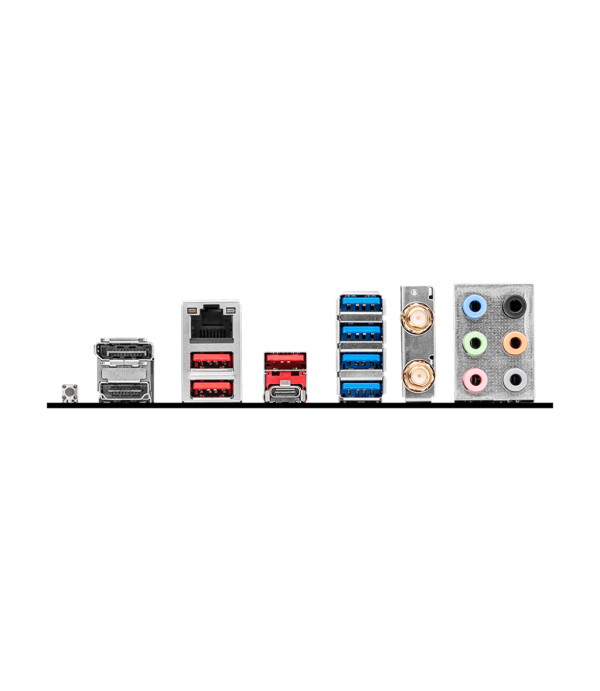

Back Panel Ports:

• DisplayPort
• 2.5G LAN
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 1 5Gbps (Type-A)
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• HDMI™
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 2x2 20Gbps (Type-C)

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension: ATX, 243.84mm x 304.8mm

Warranty: 3 Years

Note: Features, Price, Specifications are subject to change without notice.
