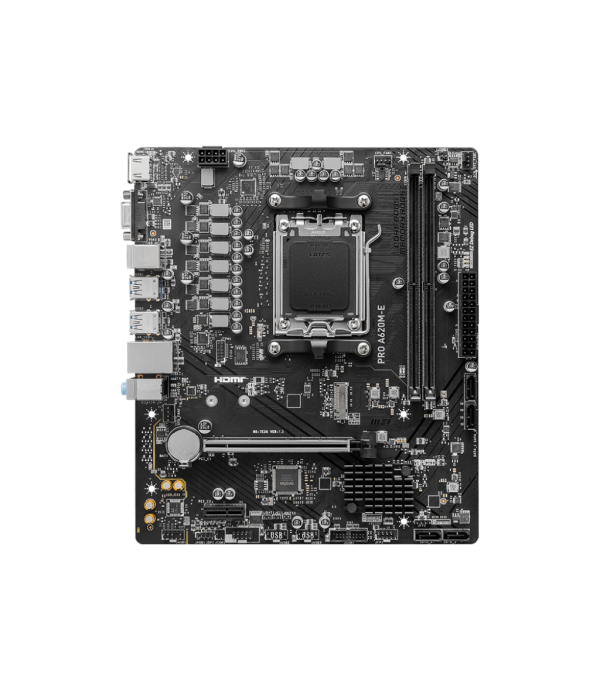

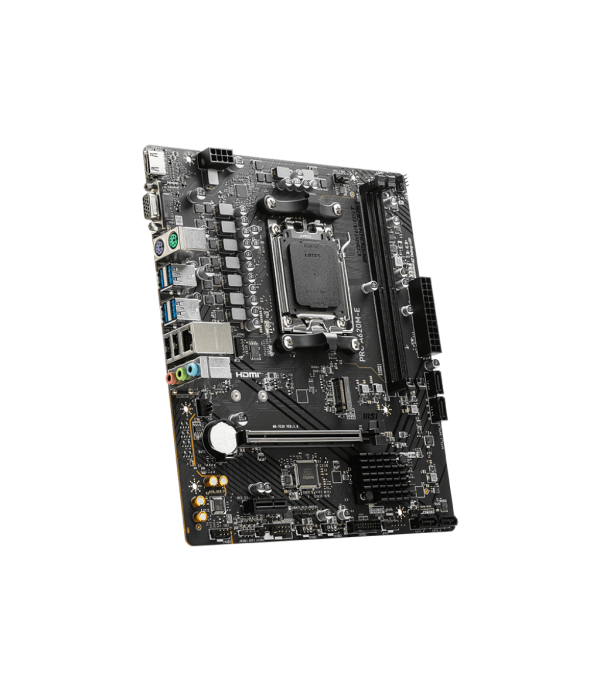

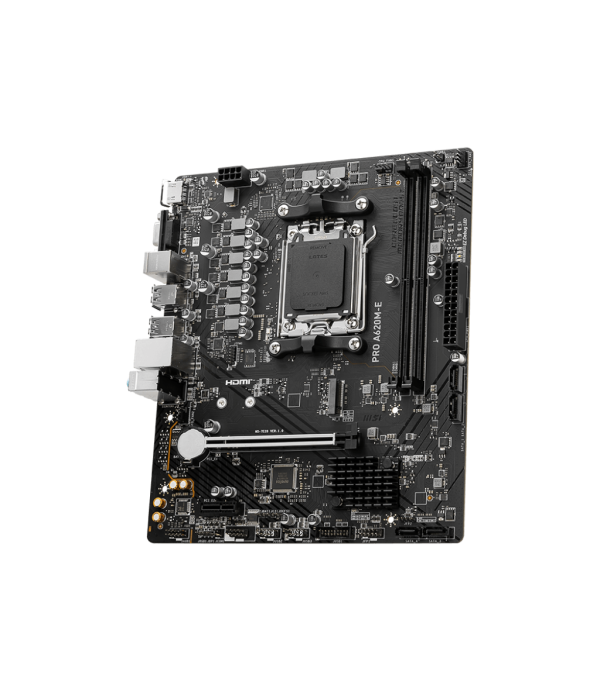

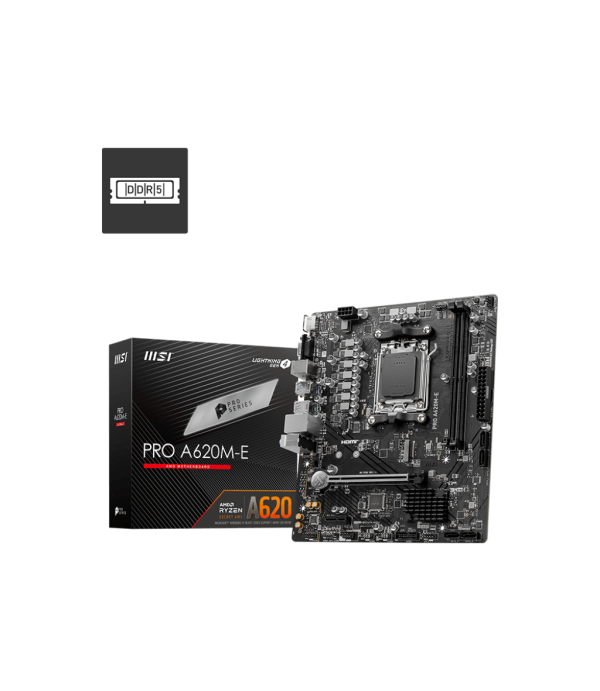

MSI MOTHERBOARD PRO A620M-E
₹7,800
₹15,999- Ex GST: ₹6,610
- Brand: MSI
- Product Code: PRO A620M-E
- Availability: Out Of Stock
Motherboard with AMD Ryzen™ 9000/8000/7000 Series Support
Supports: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory: Supports DDR5 Memory, Dual Channel DDR5 6800+ MHz (OC)
Core Boost: Premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
Lightning Fast Gaming Experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Studio-grade sound quality for the most immersive gaming experience
Steel Armor: Protects VGA cards against bending and EMI for better performance, stability, and strength
Specifications
Chipset: AMD A620
CPU: Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors with Socket AM5
Memory:
- DIMM Slots: 2 x DDR5
- Maximum Capacity: 128 GB
- Memory Support: DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
- Max Overclocking Frequency:
- 1DPC 1R Max speed up to 6800+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO
Onboard Graphics:
- 1 x HDMI™ (Supports HDMITM 2.1, maximum resolution of 4K 60Hz*)
- 1 x VGA (Supports maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz)
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slots:
- 1 x PCI-E x16 slot
- Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
- Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
- Supports x4 (For Ryzen™ 5 8500G processor)
- 1 x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio: Realtek® ALC897 Codec with 7.1-Channel High Definition Audio
Storage:
- 1 x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
- 4 x SATA 6G
- RAID Support: RAID 0, RAID 1, and RAID 10 for SATA storage devices

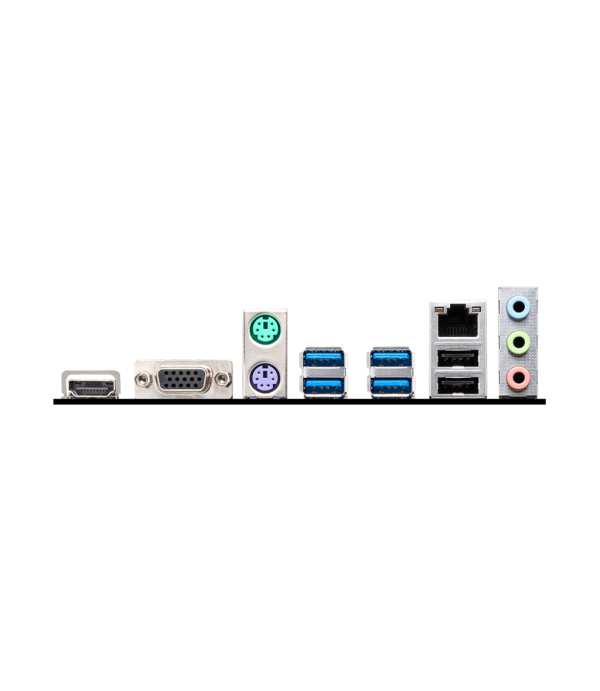

USB Ports:
- 2 x USB 2.0 (Rear)
- 4 x USB 2.0 (Front)
- 4 x USB 5Gbps Type-A (Rear)
- 2 x USB 5Gbps Type-A (Front)
LAN: Realtek® RTL8111H Gigabit LAN
Internal I/O:
- 1 x Power Connector (ATX_PWR)
- 1 x Power Connector (CPU_PWR)
- 1 x CPU Fan
- 2 x System Fan
- 2 x Front Panel (JFP)
- 1 x Chassis Intrusion (JCI)
- 1 x Front Audio (JAUD)
- 1 x Com Port (JCOM)
- 1 x RGB LED connector (JRGB)
- 1 x TPM pin header (Support TPM 2.0)
- 4 x USB 2.0 ports
- 2 x USB 5Gbps Type-A ports
LED Feature: 4 x EZ Debug LED
Operating System: Supports Windows® 11 64-bit, Windows® 10 64-bit
