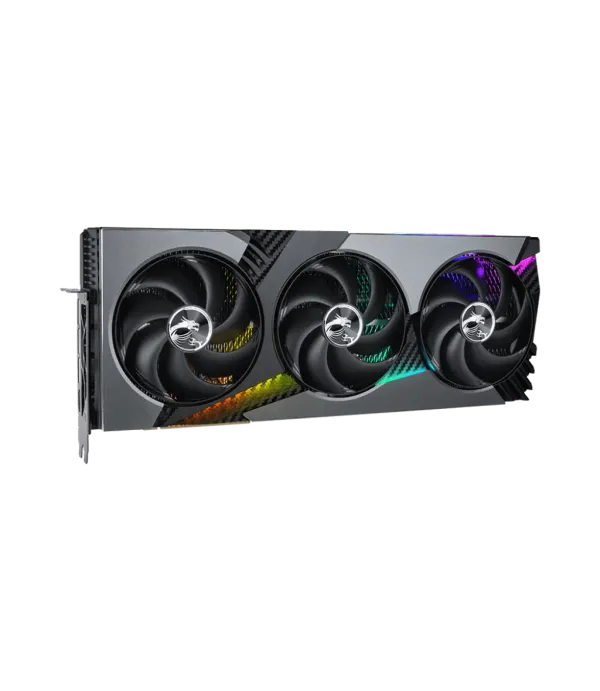

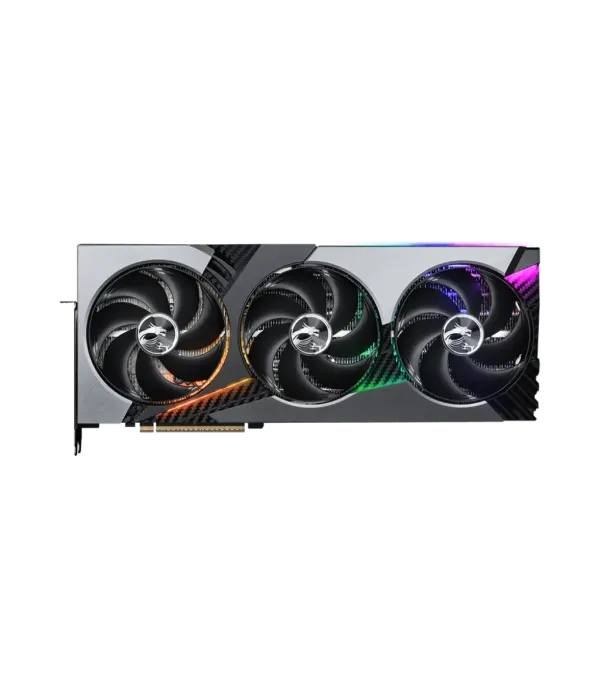

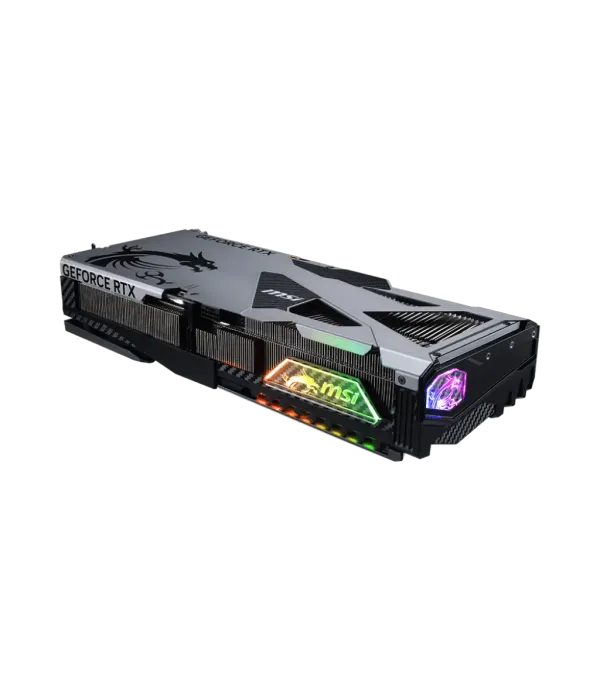

GeForce RTX™ 5080 16G VANGUARD SOC

Feature Highlights:

• Powered by NVIDIA Blackwell architecture with DLSS 4
• HYPER FROZR THERMAL DESIGN: Advanced thermal design delivers exceptional cooling and quiet operation
• STORMFORCE Fan: Seven fan blades with claw texturing and circular arc design for optimal airflow with minimal noise
• Advanced Vapor Chamber: Efficient heat transfer from the GPU and VRAM to the core pipe for optimal dissipation
• Core Pipes: Square-shaped pipes maximize heat dissipation with the Vapor Chamber for superior cooling
• Filled Fins: Fins covering the core pipes reduce turbulence and enhance cooling
• Wave Curved 4.0: Precision-engineered wave edges improve airflow and reduce turbulence
• Air Antegrade Fin 2.0: V-shaped cutout and high-low design optimize airflow efficiency

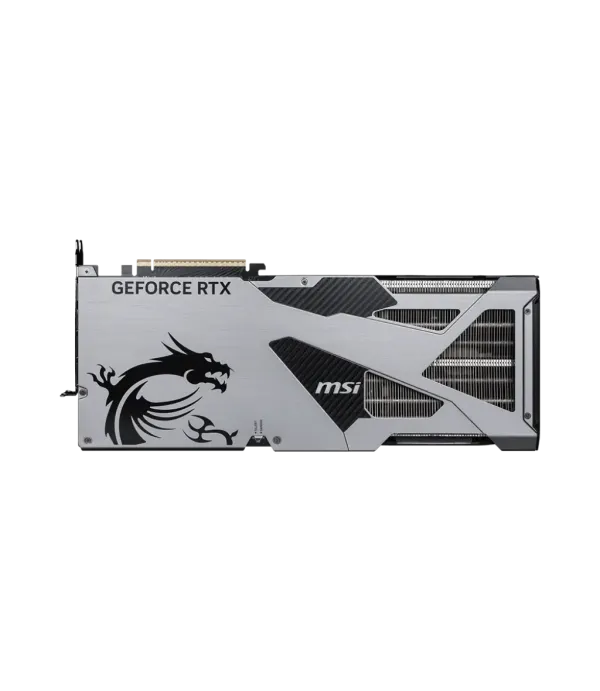

• Metal Backplate: Reinforced backplate with airflow vents and thermal pads for additional cooling
• Dual BIOS: Switch between GAMING mode for performance or SILENT mode for quieter operation
• MSI Center: Real-time monitoring, tweaking, and optimization software
• Afterburner: Widely recognized overclocking software for full control

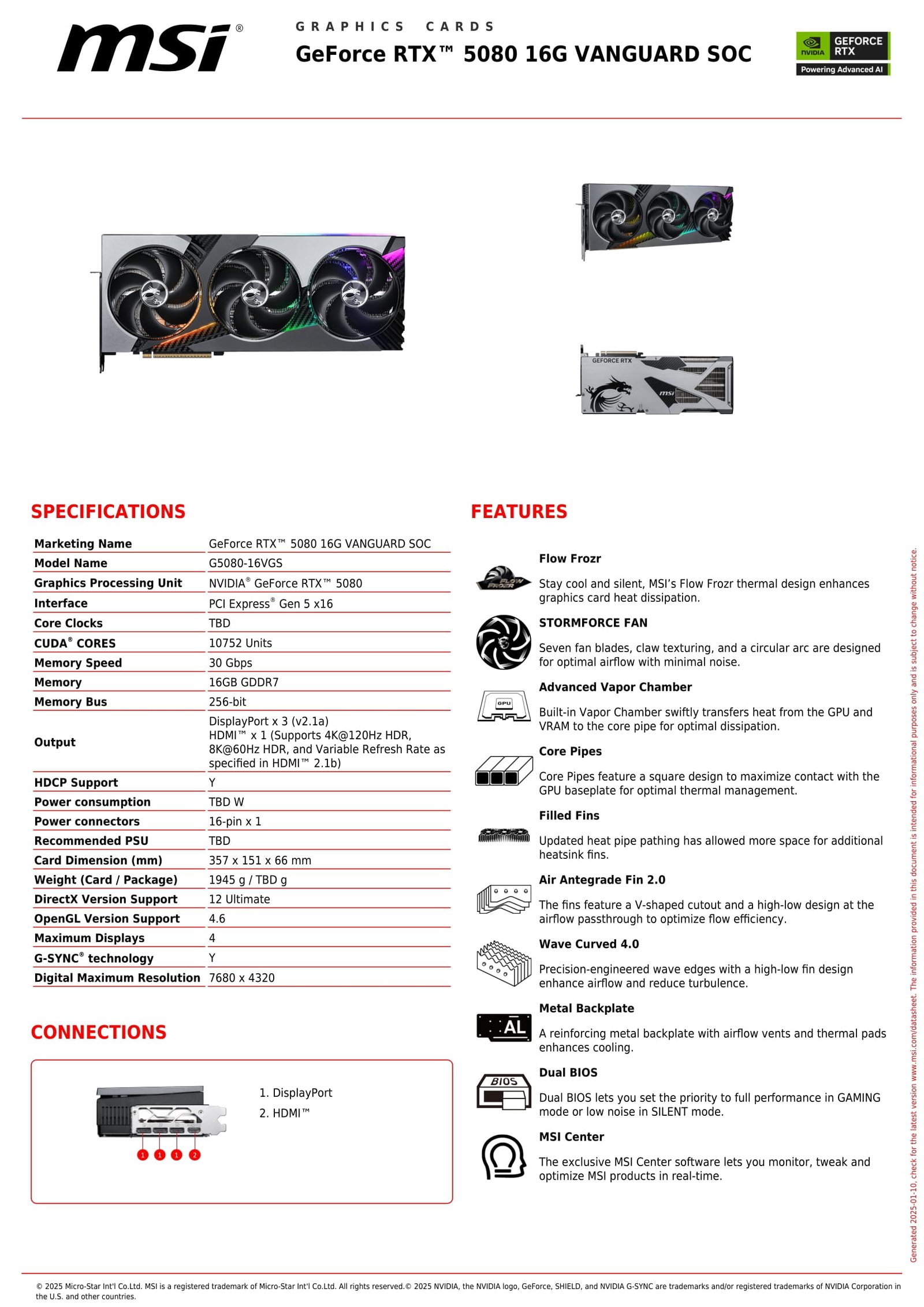

Product Specifications

Marketing Name: GeForce RTX™ 5080 16G VANGUARD SOC

Model Name: G5080-16VGS

Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080

Interface: PCI Express® Gen 5 x16

Core Clocks: TBD

CUDA® Cores: 10,752 Units

Memory Speed: 30 Gbps

Memory: 16GB GDDR7

Memory Bus: 256-bit

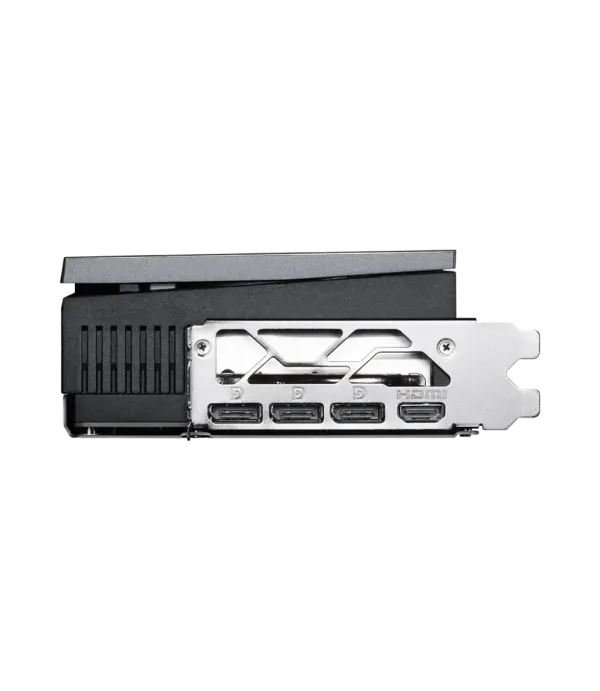

Output: 3 x DisplayPort (v2.1a), 1 x HDMI™ (Supports 4K@120Hz HDR, 8K@60Hz HDR, VRR)

HDCP Support: Yes

Power Consumption: TBD

Power Connectors: 1 x 16-pin

Recommended PSU: TBD

Card Dimensions: 357 x 151 x 66 mm

Weight (Card / Package): 1945 g / TBD g

DirectX Version Support: 12 Ultimate

OpenGL Version Support: 4.6

Maximum Displays: 4

G-SYNC® Technology: Yes

Digital Maximum Resolution: 7680 x 4320
