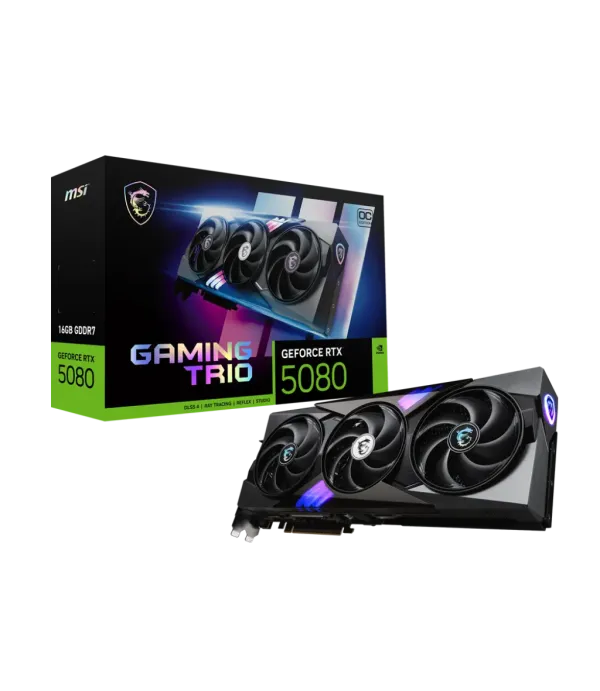

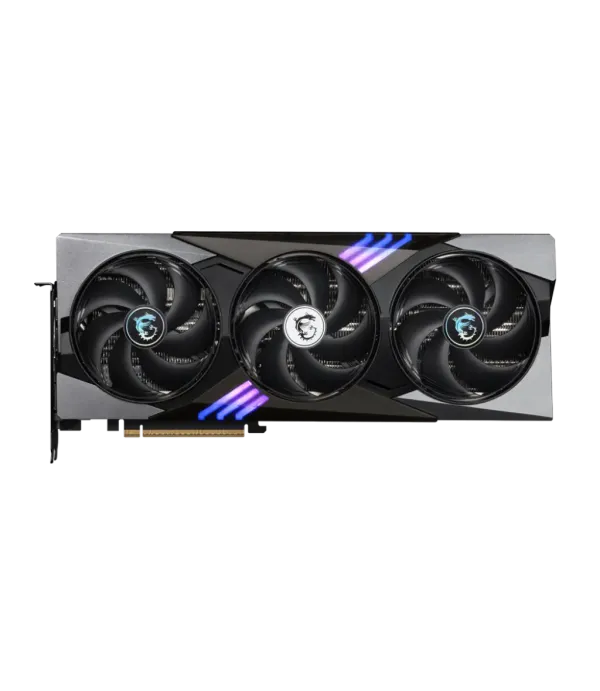

GeForce RTX™ 5080 16G GAMING TRIO OC

Feature Highlights:

• Powered by NVIDIA Blackwell architecture with DLSS 4
• TRI FROZR 4 Thermal Design: Advanced fans, airflow control, and thermal enhancements ensure superior cooling and quieter operation
• STORMFORCE Fan: Seven fan blades with claw texturing and circular arc design for optimal airflow and reduced noise
• Nickel-plated Copper Baseplate: Efficient heat transfer from GPU and memory to maintain low temperatures
• Core Pipes: Square design maximizes contact with the GPU baseplate for enhanced thermal management

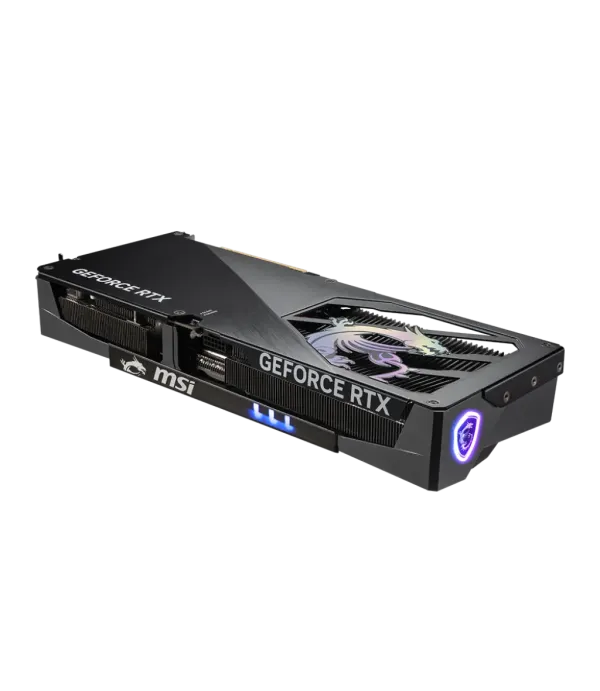

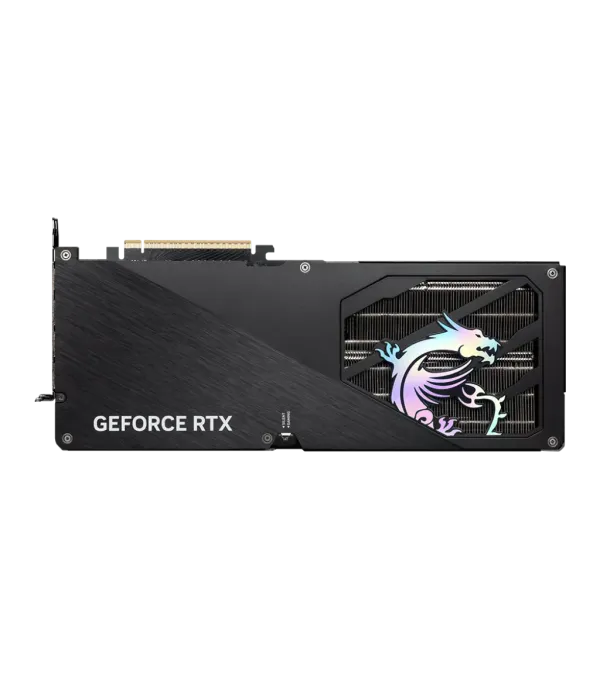

• Metal Backplate: Reinforced backplate with airflow vents and thermal pads for additional cooling
• Wave Curved 4.0: High-low fin design improves airflow and reduces turbulence
• Air Antegrade Fin 2.0: V-shaped cutouts and a high-low design optimize airflow efficiency
• Dual BIOS: Toggle between GAMING mode for performance and SILENT mode for quiet operation
• MSI Center: Monitor, tweak, and optimize MSI products in real-time
• Afterburner: Comprehensive overclocking and monitoring software for optimal performance

Product Specifications

Marketing Name: GeForce RTX™ 5080 16G GAMING TRIO OC

Model Name: G5080-16GTC

Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080

Interface: PCI Express® Gen 5

Core Clocks: TBD

CUDA® Cores: 10,752 Units

Memory Speed: 30 Gbps

Memory: 16GB GDDR7

Memory Bus: 256-bit

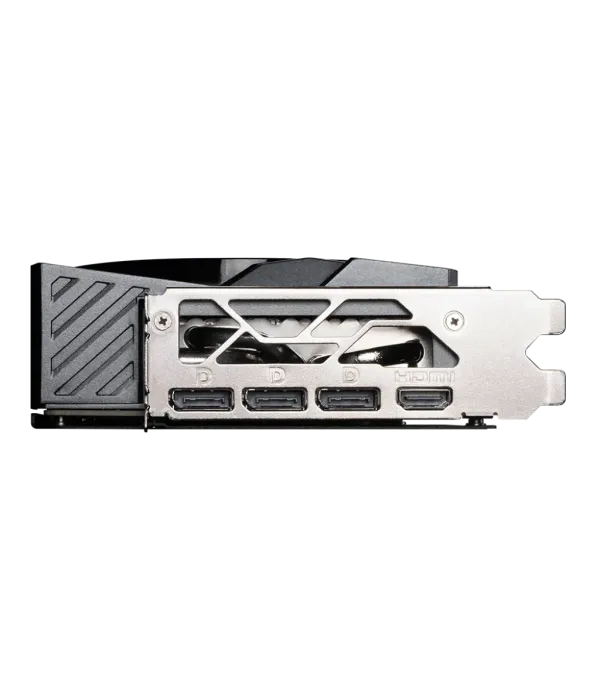

Output: 3 x DisplayPort (v2.1a), 1 x HDMI™ (Supports up to 4K 480Hz or 8K 120Hz with DSC, VRR, HDR)

HDCP Support: Yes

Power Consumption: TBD

Power Connectors: 1 x 16-pin

Recommended PSU: TBD

Card Dimensions: 338 x 140 x 50 mm

Weight (Card / Package): 1362 g / 1885 g

DirectX Version Support: 12 Ultimate

OpenGL Version Support: 4.6

Maximum Displays: 4

G-SYNC® Technology: Yes

Digital Maximum Resolution: 7680 x 4320
