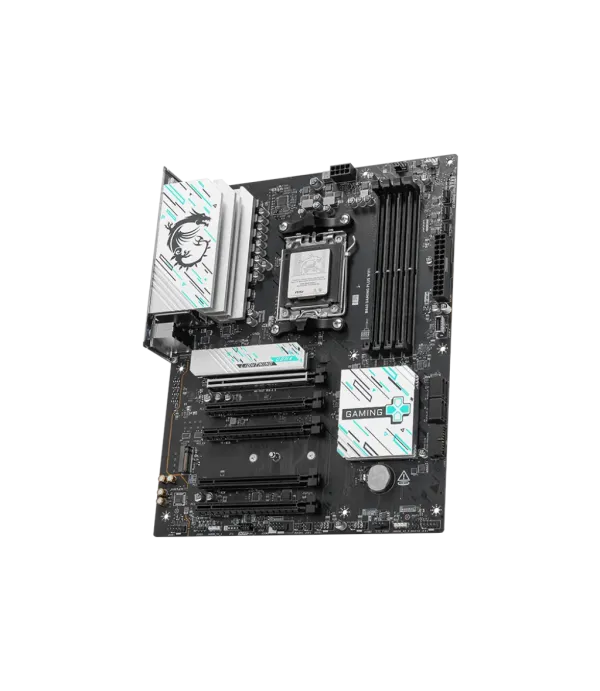

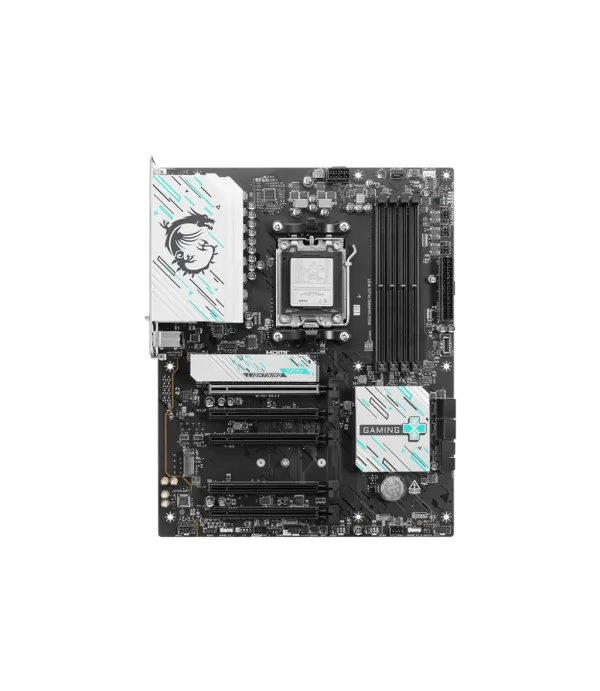

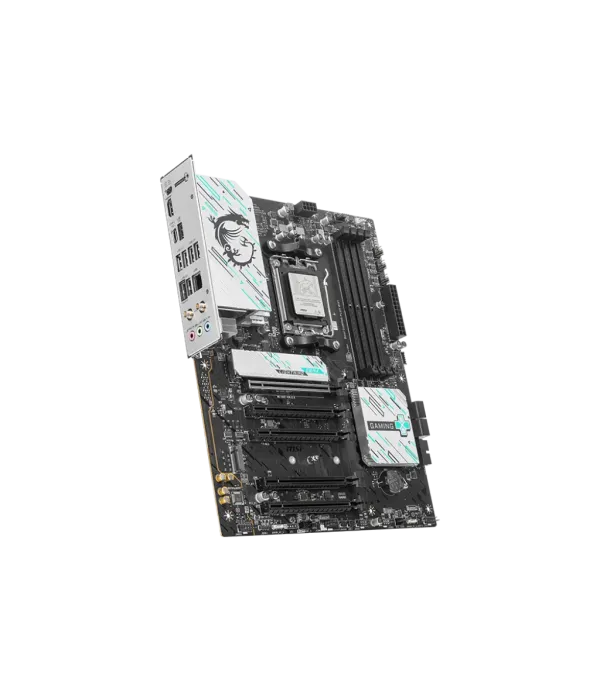

B840 GAMING PLUS WIFI

The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

Specifications

• Supports: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports: DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II are built for high-performance systems and non-stop experience.
• High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper.
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna.
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Chipset

AMD B840

CPU

Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Socket

AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Onboard Graphics

1x HDMI™

Supports HDMI™ 2.1, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics.

Slots

• 5x PCI-E x16 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

Audio

Realtek® ALC897, 7.1-Channel High Definition Audio

Storage

• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)

LAN

Realtek® 8125BG 2.5G LAN

Wireless LAN & Bluetooth

Wi-Fi 7 Solution

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED Feature

4x EZ Debug LED

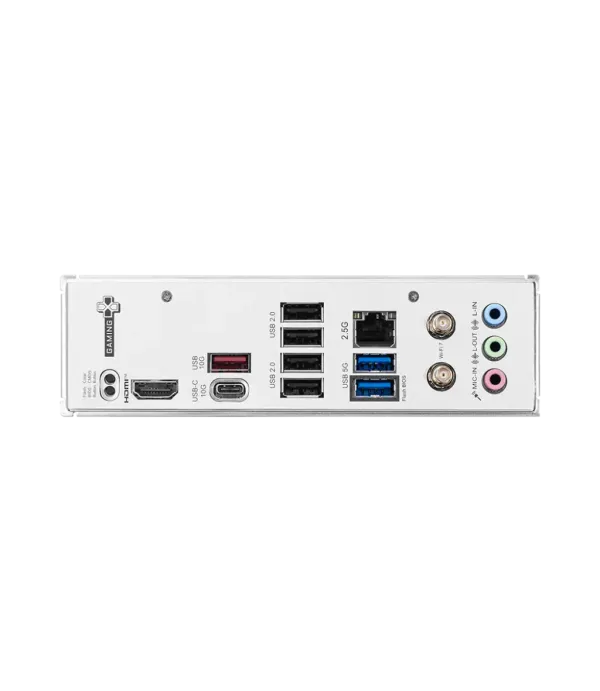

Back Panel Ports

• Clear CMOS Button
• USB 10Gbps (Type-A)
• Wi-Fi / Bluetooth

Operating System

Support for Windows® 11 64-bit
