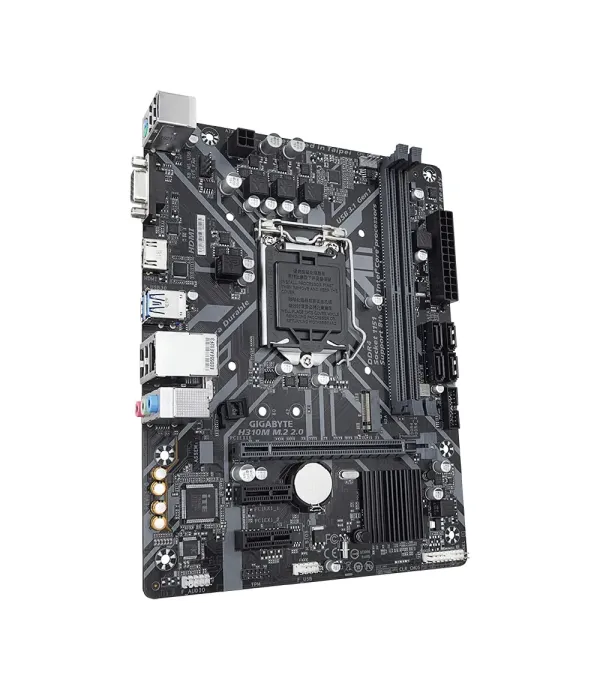

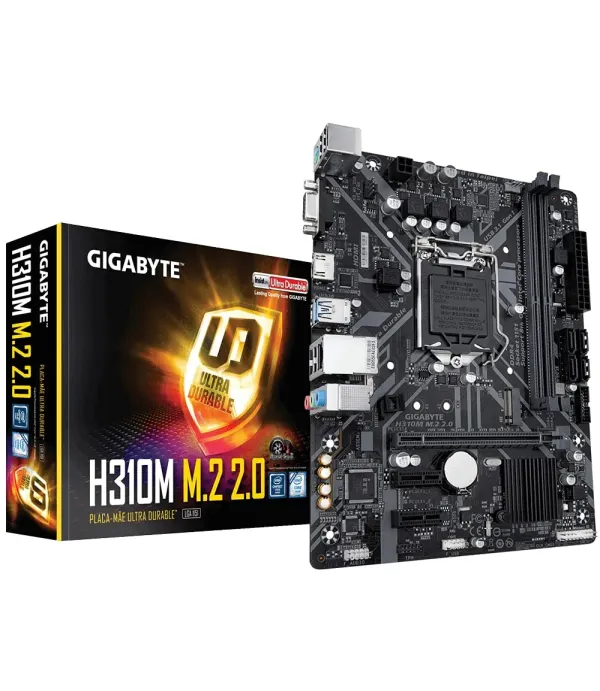

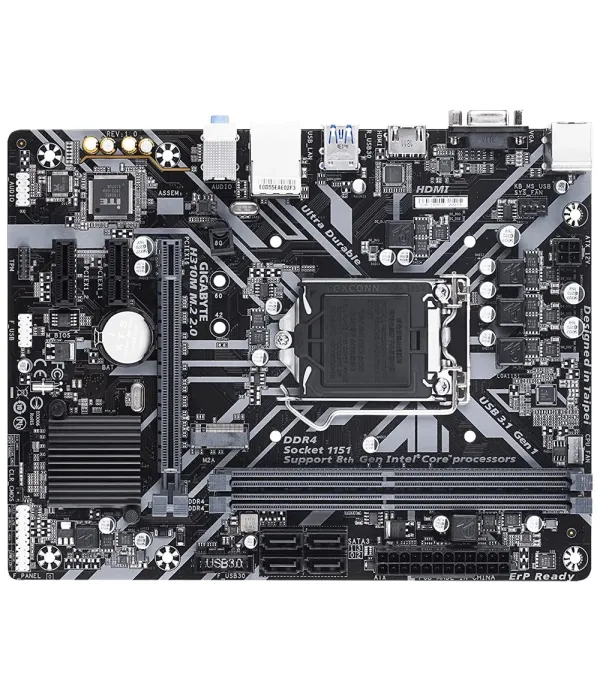

Intel H310 Ultra Durable Motherboard

Overview

• Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• 8-Channel HD Audio with High Quality Audio Capacitors
• Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• HDMI 1.4, D-Sub Ports for Multiple Display
• CEC 2019 Ready, Save Power With a Simple Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• All new GIGABYTE™ APP Center, simple and easy to use
• Anti-Sulfur Resistors Design

CPU

Socket: LGA1151

Supported Processors: 9th and 8th Generation Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors

Cache: L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

Intel® H310 Express Chipset

Memory

• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
• Dual-channel memory architecture
• Support for DDR4 2666/2400/2133 MHz memory modules
• Support for ECC and non-ECC Un-buffered DIMMs
• Support for Extreme Memory Profile (XMP) memory modules
• To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
• * Please refer to "Memory Support List" for more information.

Onboard Graphics

Integrated Graphics Processor: Intel® HD Graphics

• 1 x D-Sub port, max resolution 1920x1200@60 Hz
• 1 x HDMI port, max resolution 4096x2160@30 Hz (HDMI 1.4)

Maximum shared memory: 1 GB

Audio

Realtek® Audio codec

High Definition Audio, 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

• 1 x PCI Express x16 slot (PCIe 3.0 x16)
• 2 x PCI Express x1 slots (PCIe 2.0)

Storage Interface

• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
• 4 x SATA 6Gb/s connectors

USB

• 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

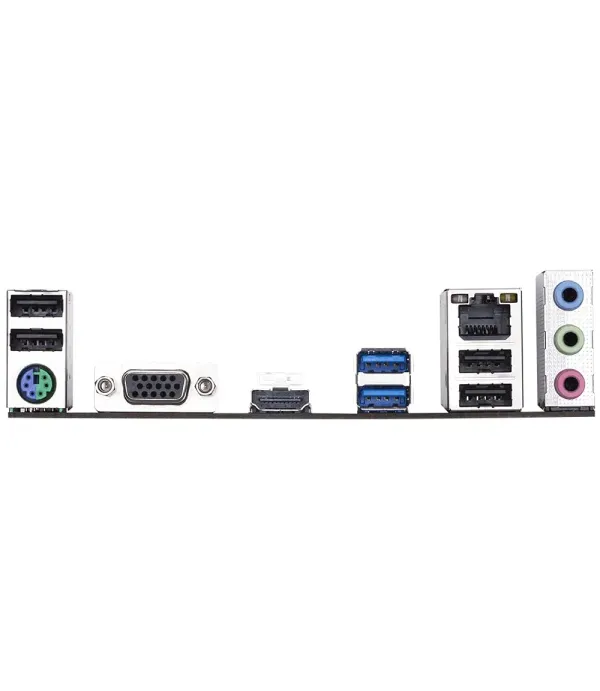

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.1 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

• Voltage, Temperature, Fan speed detection
• Overheating and Fan fail warnings
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center including various tools like @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Platform Power Management, Smart Backup, Smart Keyboard, System Information Viewer, and USB Blocker
• Support for Q-Flash, Xpress Install

Bundled Software

• Norton® Internet Security (OEM version)
• Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm

Remark

Due to different Linux support conditions provided by chipset vendors, please download Linux drivers from chipset vendors' websites or 3rd party websites. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from vendors, they will be updated on the GIGABYTE website.
