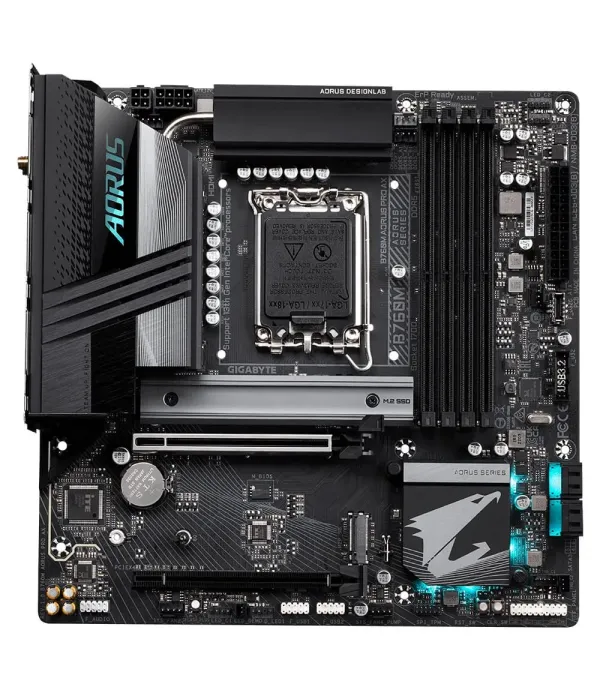

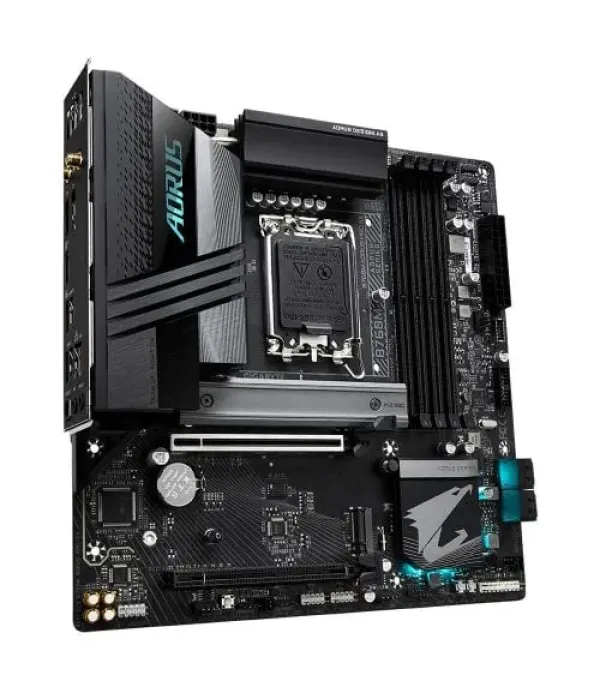

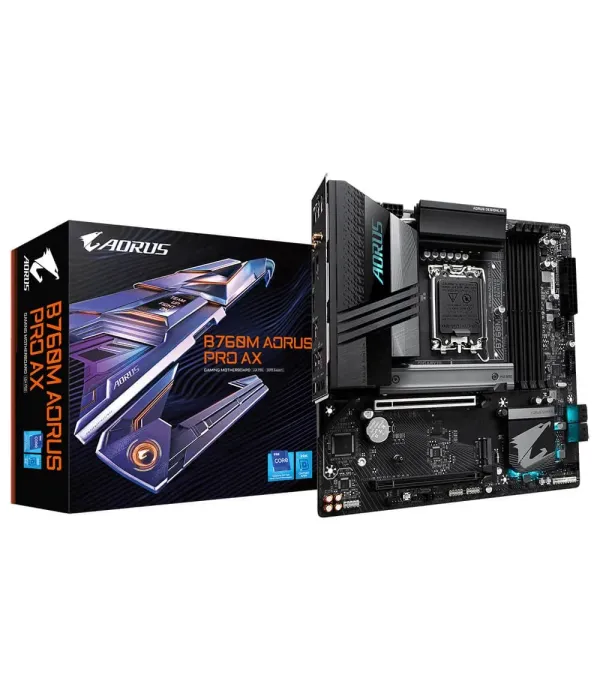

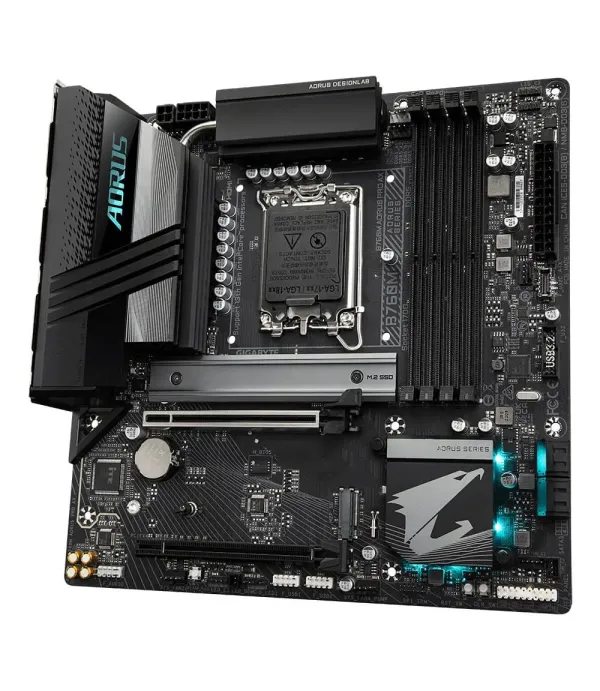

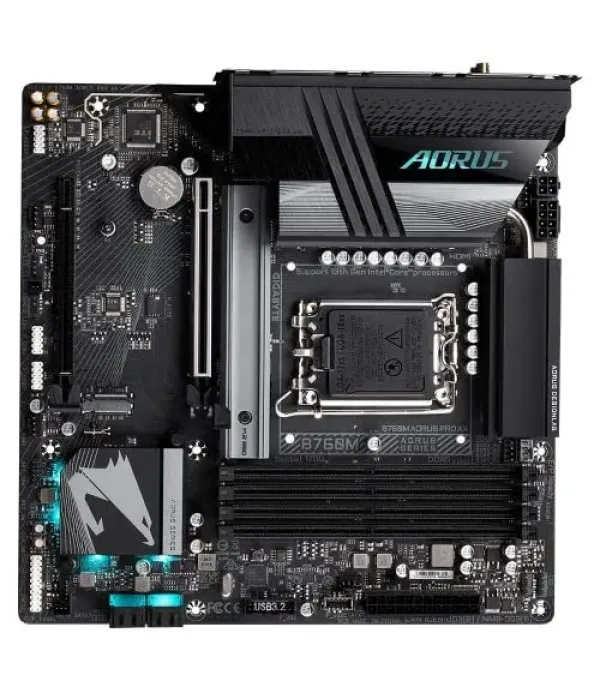

GIGABYTE B760M AORUS PRO Motherboard

Overview

• Supports Intel® Core™ 14th/13th/12th Gen processors
• Twin 14*+1+1 Phases Digital VRM Solution for unparalleled performance
• Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard for VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card

CPU

Socket: LGA1700

Supported Processors: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors*

Cache: L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

Intel® B760 Express Chipset

Memory

• Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM) of system memory
• Dual-channel memory architecture
• Support for ECC and non-ECC Un-buffered DIMMs
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor: Intel® HD Graphics

• 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1)
• 1 x DisplayPort, max resolution 4096x2304@60 Hz (DisplayPort 1.2)

* Graphics specifications may vary depending on CPU support.

Audio

• Realtek® Audio CODEC
• High Definition Audio, 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

• Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

• 1 x PCI Express x16 slot (PCIe 4.0 x16)
• 1 x PCI Express x16 slot (PCIe 4.0 x4, supporting AMD CrossFireX™ technology)

Storage Interface

• 1 x M.2 connector (PCIe 4.0 x4/x2) for CPU
• 1 x M.2 connector (PCIe 4.0 x4/x2) for chipset
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support

USB

• 1 x USB Type-C® port on the back panel (USB 3.2 Gen 2x2)
• 1 x USB Type-C® port with USB 3.2 Gen 2 support (internal header)
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• Multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports

Internal I/O Connectors

• 24-pin ATX main power connector
• 8-pin ATX 12V power connector
• 4-pin ATX 12V power connector
• 1 x CPU fan header, 1 x CPU fan/water cooling pump header
• 3 x system fan headers, 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers, 2 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors
• 1 x USB Type-C® header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x reset button, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x reset jumper

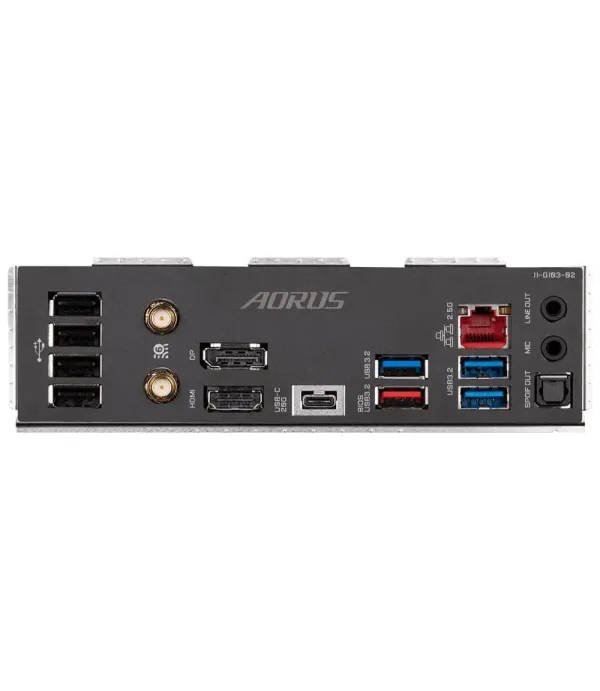

Back Panel Connectors

• 1 x USB Type-C® port (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port, 1 x DisplayPort
• 1 x RJ-45 port, 1 x optical S/PDIF Out connector
• 2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

• Voltage, Temperature, Fan speed, Water cooling flow rate detection
• Fan fail warning, Fan speed control

BIOS

• 1 x 256 Mbit flash
• AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash, Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
