Gigabyte GeForce RTX 4090 Graphics Card

The Gigabyte GeForce RTX 4090 is a high-performance graphics card designed for advanced gaming, 3D rendering, and demanding applications. It is powered by NVIDIA's Ada Lovelace architecture, featuring 24GB of GDDR6X memory and a 384-bit memory interface, offering unparalleled performance and ray tracing capabilities.

Key Features

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4090
• Integrated with 24GB GDDR6X 384-bit memory interface
• WINDFORCE Cooling System
• Dual BIOS
• Protection metal back plate
• Anti-sag bracket

Specifications

• Graphics Processing: GeForce RTX™ 4090
• Core Clock: 2520 MHz
• CUDA® Cores: 16384
• Memory Clock: 21 Gbps
• Memory Size: 24 GB
• Memory Type: GDDR6X
• Memory Bus: 384-bit
• Card Bus: PCI-E 4.0
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• Maximum Digital Resolution: 7680x4320
• Multi-view Support: 4

Physical Specifications

• Card Size: L=331mm, W=136mm, H=55.5mm
• PCB Form: ATX

Power Requirements

• Recommended PSU: 850W
• Power Connectors: 1 x 16-pin

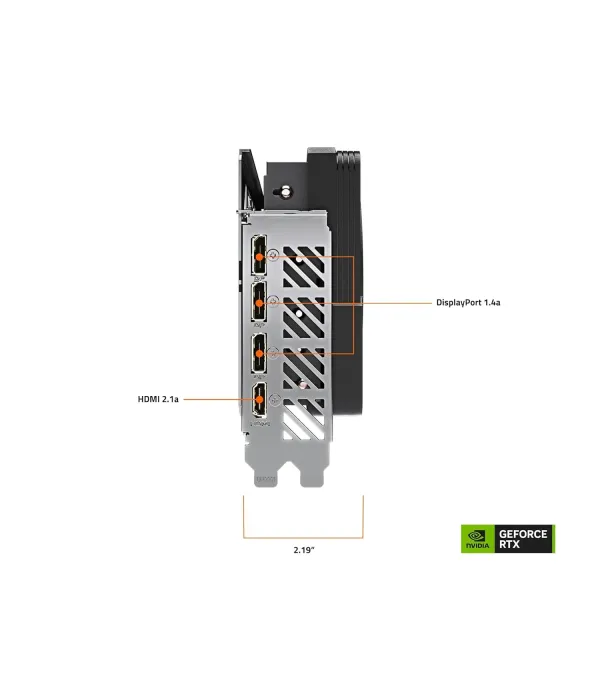

Display Outputs

• 3 x DisplayPort 1.4a
• 1 x HDMI 2.1a

Accessories

• Quick Guide
• Anti-sag bracket
• Anti-sag bracket installation guide
• One 16-pin to four 8-pin power adaptor

Note: Features, price, and specifications are subject to change without notice.
