FEATURES

Architecture: NVIDIA Blackwell

DLSS: NVIDIA DLSS 4

Ray Tracing: Dedicated RT Cores

Tensors Cores: Dedicated Tensor Cores

API Support: Microsoft DirectX® 12 Ultimate

Graphics Memory: GDDR7

Software & Features: NVIDIA® App, NVIDIA G-SYNC®, NVIDIA GPU Boost™, Game Ready & NVIDIA Studio Drivers

Display Outputs: DisplayPort 2.1b, HDMI 2.1b

VR Ready: Yes

GPU ENGINE SPECS

CUDA Cores: 8960

Boost Clock: 2467MHz

1-Click OC Clock: 2482MHz (via Xtreme Tuner Plus Software)

MEMORY SPECS

Memory Speed: 28 Gbps

Memory Capacity: 16GB GDDR7

Memory Interface: 256-bit

Memory Bandwidth: 896 GB/sec

FEATURE SUPPORT

PCI Express: PCI-E 5.0

OS Compatibility: Windows 10/11 64-bit

COOLING SYSTEM

Fan Setup: 3 x 92mm WINGS 3.0

Fan Feature: Fan Stop @ Idle (All Fans)

DISPLAY SUPPORT

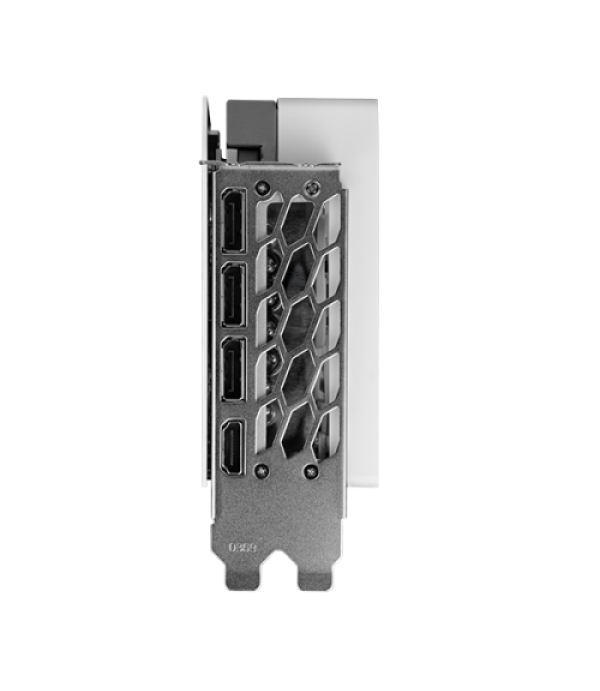

Ports: DisplayPort 2.1b x3, HDMI 2.1b x1

DIMENSIONS

With Bracket: 315 x 140.5 x 50.7 mm (NVIDIA SFF-Ready)

Without Bracket: 303 x 125 x 49.7 mm

IN-BOX ACCESSORIES

1-Click Sync Pro Cable, PCIe 1x 16-pin to 3x 8-pin Adapter, Metallic Support Stick

POWER & SYSTEM REQUIREMENTS

PCIe Slot: PCI Express x16

System Space: 2.5 Slot Card Required

Power Connectors: PSU with native 450W PCIe Gen5 16-pin connector or 3x PCIe 8-pin connectors (via adapter)

Minimum PSU Requirement: 750W or greater (based on Ryzen 9 9950X setup)

Recommended PSU Standard: PCIe CEM 5.1 Compliant PSU

Recommended System Memory: 32GB

OS Compatibility: Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
