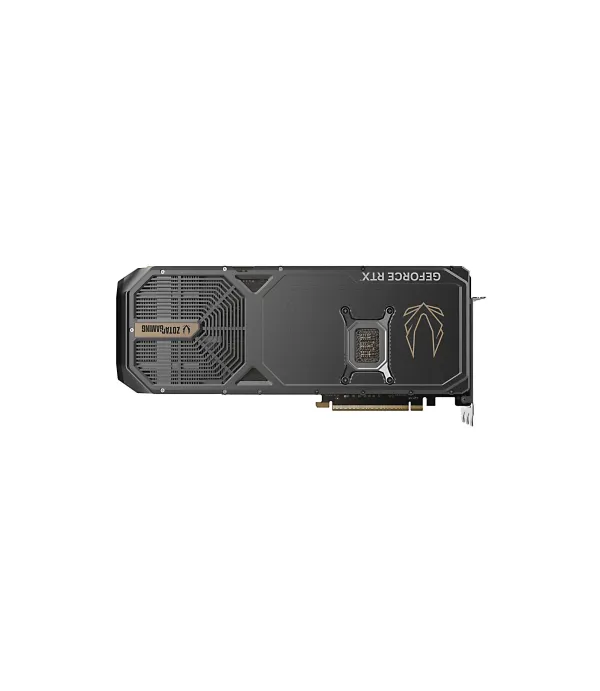

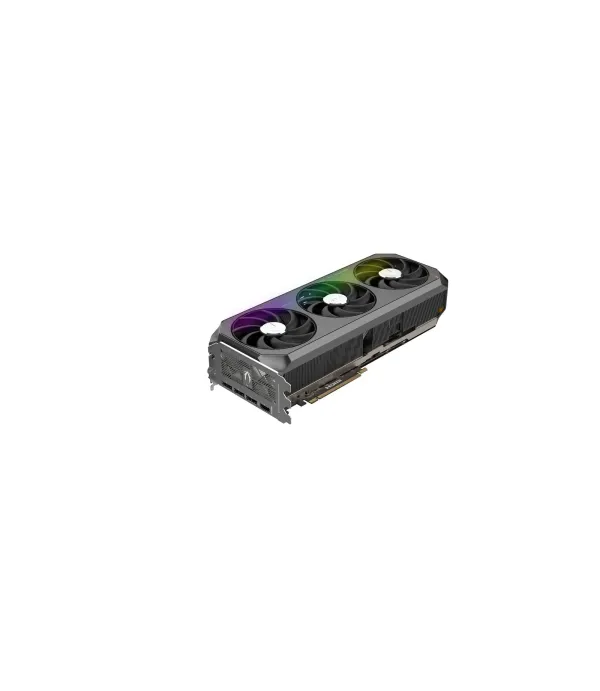

NVIDIA GeForce RTX™ 5080

Feature Highlights:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• The ultimate ZOTAC GAMING GPU
• Infinity Mirror Design
• IceStorm 3.0 Advanced Cooling
• Larger Vapor Chamber
• BladeLink Fans
• FREEZE Fan Stop, Active Fan Control, Dual BIOS
• SPECTRA 2.0 RGB Lighting
• SPECTRA LINK Lighting Sync port
• Metal die-cast Backplate
• Bundled with GPU Support Bracket
• All-new FireStorm Utility

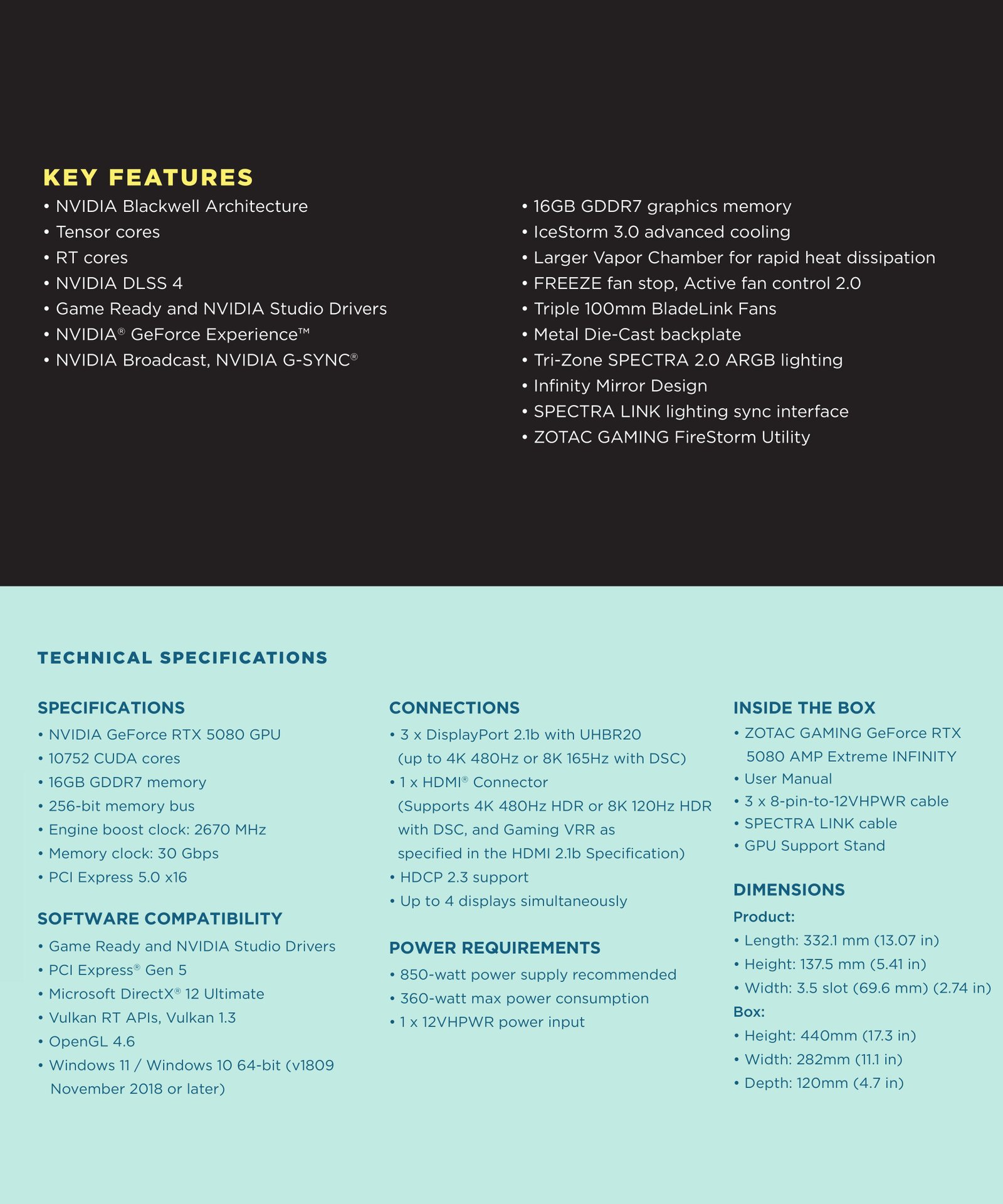

Product Specifications

GPU: NVIDIA GeForce RTX™ 5080

CUDA Cores: 10752

Video Memory: 16GB GDDR7

Memory Bus: 256-bit

Engine Clock: 2670 MHz

Memory Clock: 30 Gbps

PCI Express: PCI Express 5.0 x16

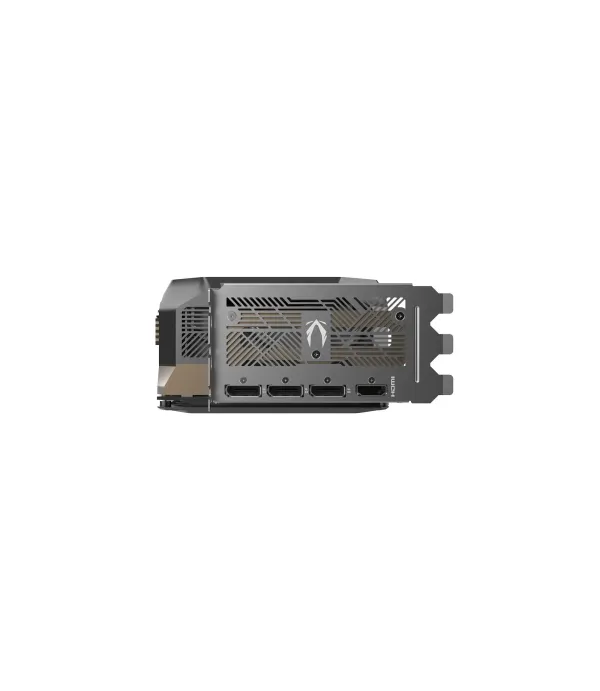

Display Outputs: 3 x DisplayPort 2.1a, 1 x HDMI® Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)

HDCP Support: 2.3

Multi Display Capability: Quad Display

Recommended Power Supply: 850W

Power Consumption: 360W

Power Input: 1 x 12VHPWR power input

DirectX: Microsoft DirectX® 12 Ultimate

OpenGL: 4.6

Cooling: IceStorm 3.0

Slot Size: 3.5 Slot

SLI: No

Supported OS: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Dimensions: 332.1mm x 137.5mm x 69.6mm / 13.1" x 5.4" x 2.7"

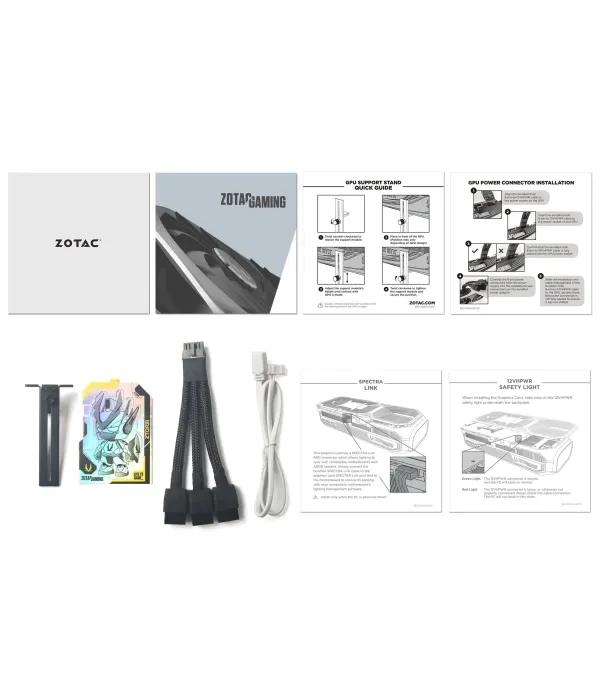

Accessories

• User Manual
• 3 x 8-pin-to-12VHPWR cable
• SPECTRA LINK cable
• GPU Support Stand
