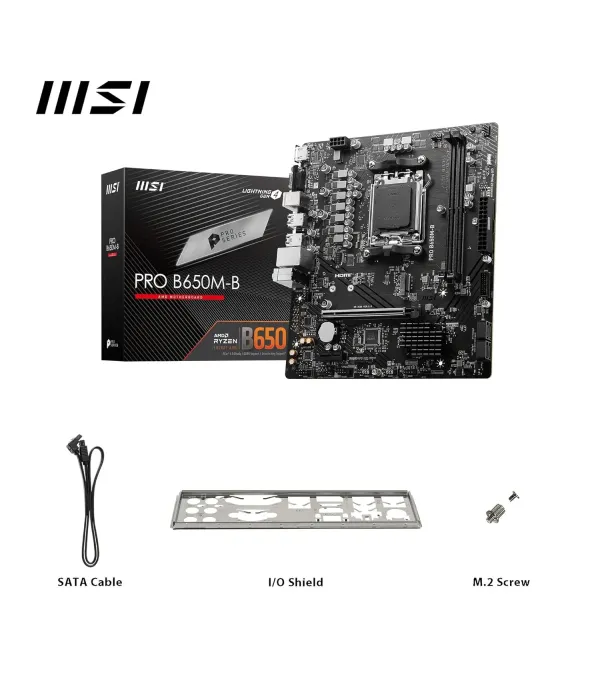

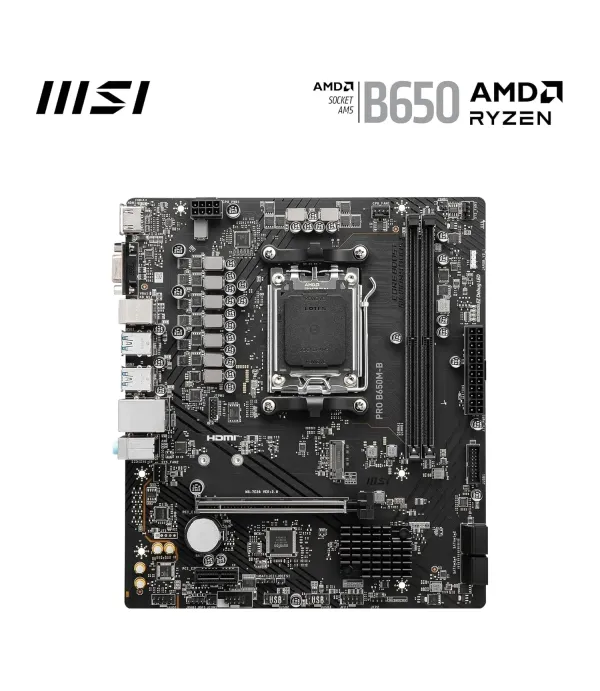

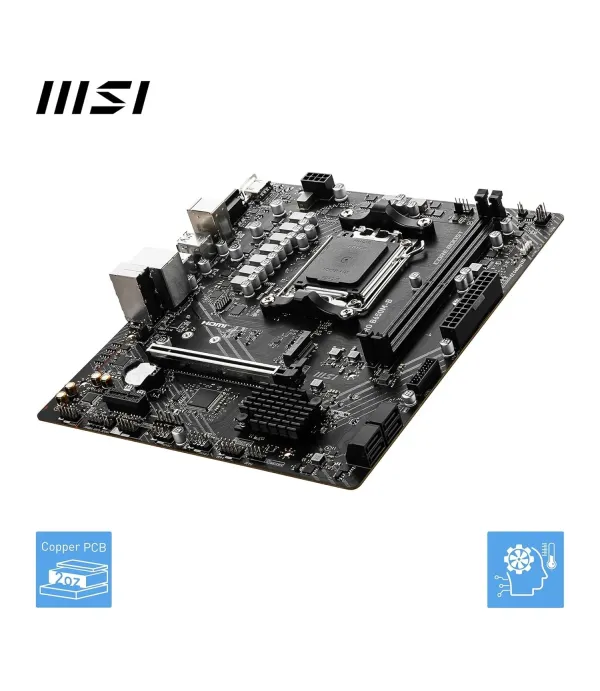

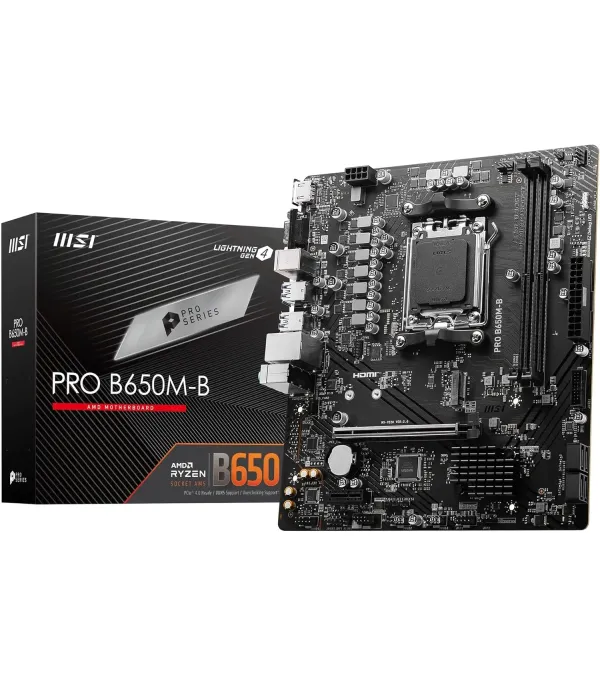

MSI PRO B650M-B

Features

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6800+ MHz (OC)
• Core Boost: Premium layout and digital power design for better performance and support for more cores

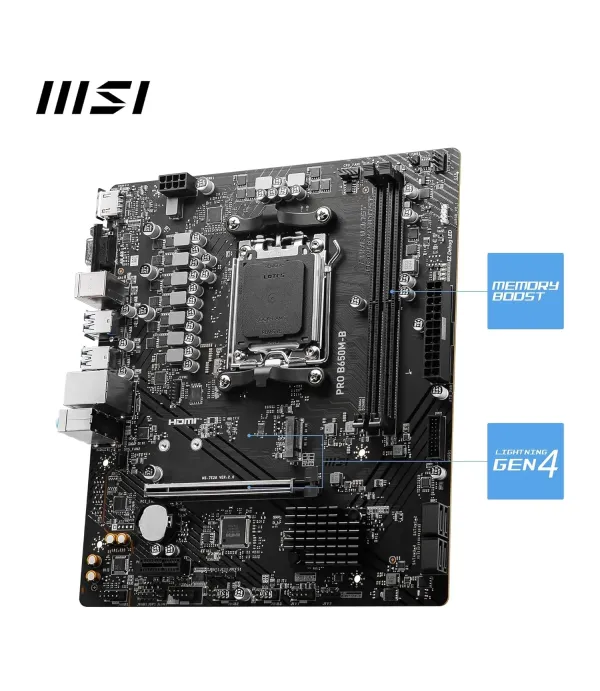

• Memory Boost: Advanced technology for optimal performance, stability, and compatibility

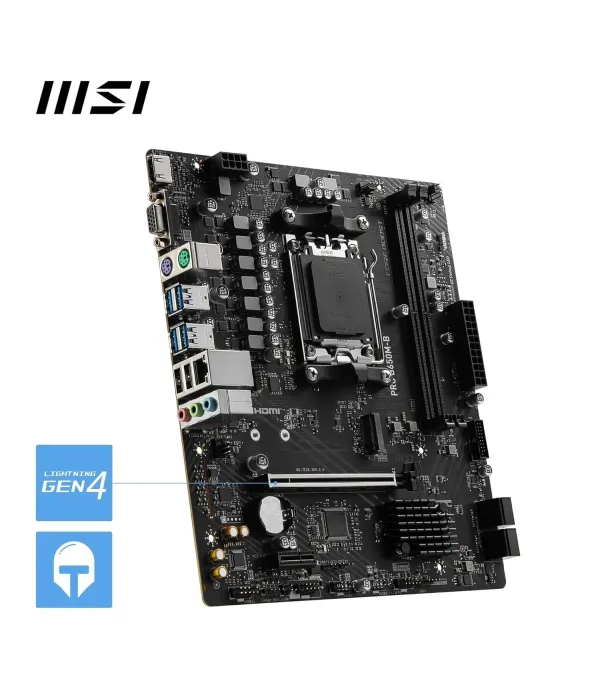

• Lightning Fast Game Experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• 2.5G LAN: Upgraded network solution for secure, stable, and fast connectivity
• AUDIO BOOST: Studio grade sound quality for an immersive audio experience
• Steel Armor: Protects VGA cards against bending and EMI for enhanced performance and stability

Specifications

Model Name

PRO B650M-B

Chipset

AMD B650

CPU

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Socket AM5

Memory

• 2 x DDR5 DIMM slots
• Maximum Memory Capacity: 96 GB
• Memory Support: DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
• Max Overclocking Frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO

Onboard Graphics

• 1 x HDMI™: Supports HDMI™ 2.1, maximum resolution of 4K 60Hz
• 1 x VGA: Supports VGA with resolutions of 2048x1536 50Hz, 2048x1280 60Hz, and 1920x1200 60Hz

Expansion Slots

• 1 x PCI-E x16 slot
• 1 x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 1 x M.2 Slot
• M.2_1 Source (From CPU): Supports up to PCIe 4.0 x4, supports 2280/2260 devices
• 4 x SATA 6G Ports

RAID

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

USB Ports

• 2 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 4 x USB 3.2 Gen1 Type A (Rear)
• 2 x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8125BG 2.5G LAN

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Internal I/O

• 1 x Power Connector (ATX_PWR)
• 1 x Power Connector (CPU_PWR)
• 1 x CPU Fan
• 2 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Com Port (JCOM)
• 1 x Addressable V2 RGB LED Connector (JARGB_V2)
• 1 x RGB LED Connector (JRGB)
• 1 x TPM Pin Header (Support TPM 2.0)
• 4 x USB 2.0 Ports
• 2 x USB 3.2 Gen1 Type A Ports

LED Feature

4 x EZ Debug LED

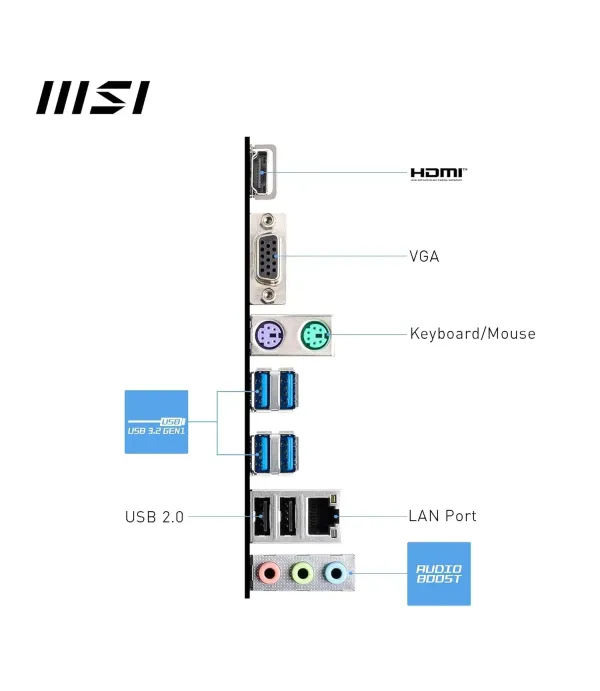

Back Panel Ports

• HDMI™
• VGA
• Keyboard/Mouse
• USB 3.2 Gen 1 5Gbps (Type-A)
• LAN Port
• Audio Connectors
• USB 2.0

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

mATX; 215mm x 243.84mm

Warranty

3 Years

Note

*** Features, Price, Specifications are subject to change without notice.

Platform

AMD

Socket

AM5

Chipset

B650

Supported Memory Type

DDR5

Max Memory Support

96 GB

Form Factor

mATX
