MSI MAG B860 TOMAHAWK WIFI
₹23,500
₹42,999- Ex GST: ₹19,915
- Brand: MSI
- Product Code: B860 TOMAHAWK WIFI
- Availability: In Stock

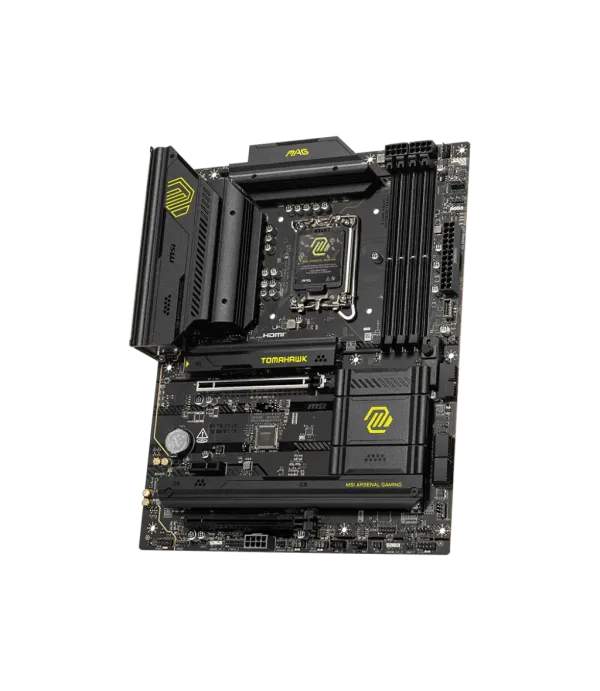

MAG B860 TOMAHAWK WIFI
MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.
Key Features:
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution
- Audio Boost: Studio grade sound quality for the most immersive gaming experience
Specifications:
Chipset
Intel B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
- 1DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Onboard Graphics
1x HDMI™: Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz*
1x DisplayPort: Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort: Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Slots
- 2x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
*PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage
- 3x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- 4x SATA 6G (Qty)
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt
Thunderbolt Resource CPU
- 1x Thunderbolt4 ports (Rear)
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A, 15W power charging
USB
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Front)
- 4x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 40Gbps Type C (Rear)
LAN
Intel® Killer™ E5000 5Gbps LAN
Internal IO
- 1x Power Connector (ATX_PWR)
- 2x Power Connector (CPU_PWR)
- 1x Power Connector (PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 5x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector (JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 2x RGB LED connector (JRGB)
- 1x TPM pin header (Support TPM 2.0)
WIRELESS LAN & BLUETOOTH
Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LED

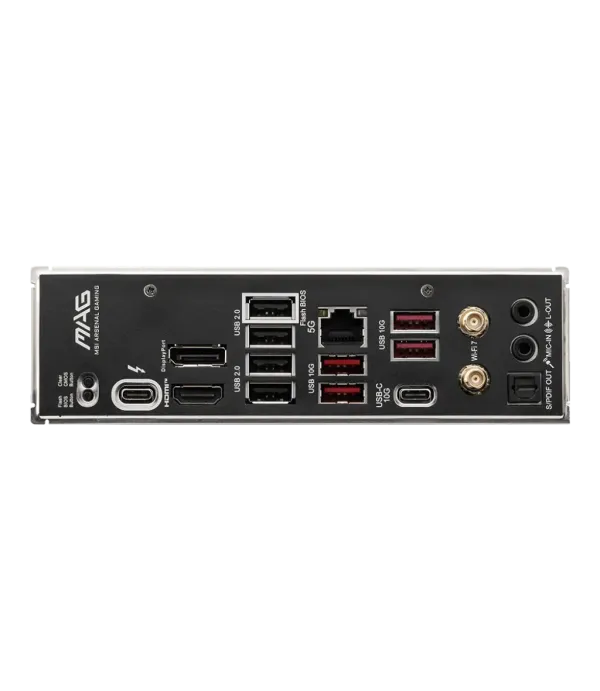

BACK PANEL PORTS
- Clear CMOS Button
- DisplayPort
- USB 2.0 (Flash BIOS Port)
- 5G LAN
- USB 10Gbps Type-A
- Audio Connectors
- Flash BIOS Button
- Thunderbolt™ 4 40Gbps (Type-C)
- HDMI™
- USB 2.0
- USB 10Gbps Type-A
- USB 10Gbps Type-C
- Wi-Fi / Bluetooth
- S/PDIF-OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit
