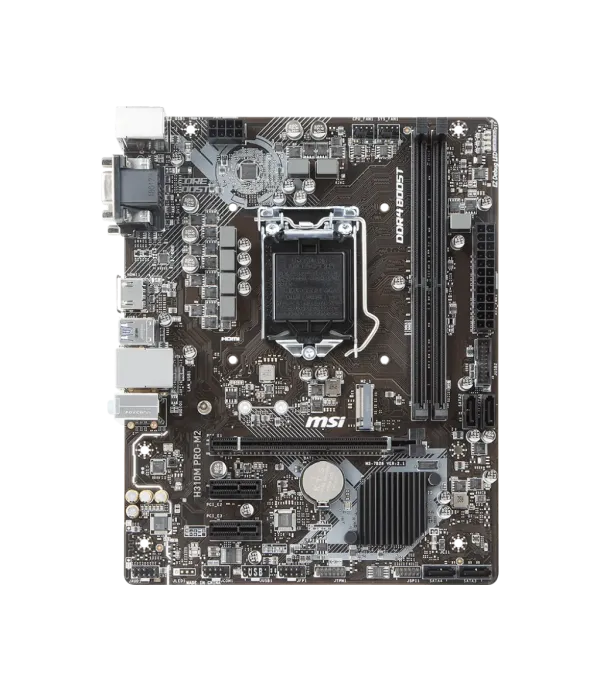

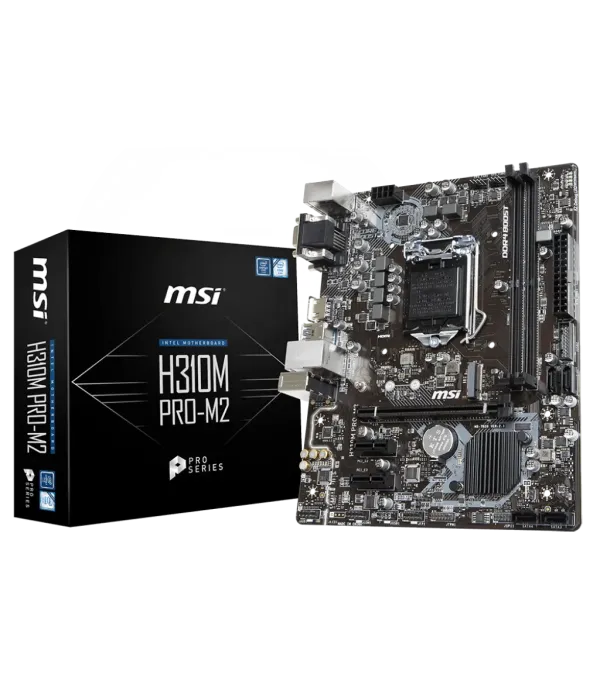

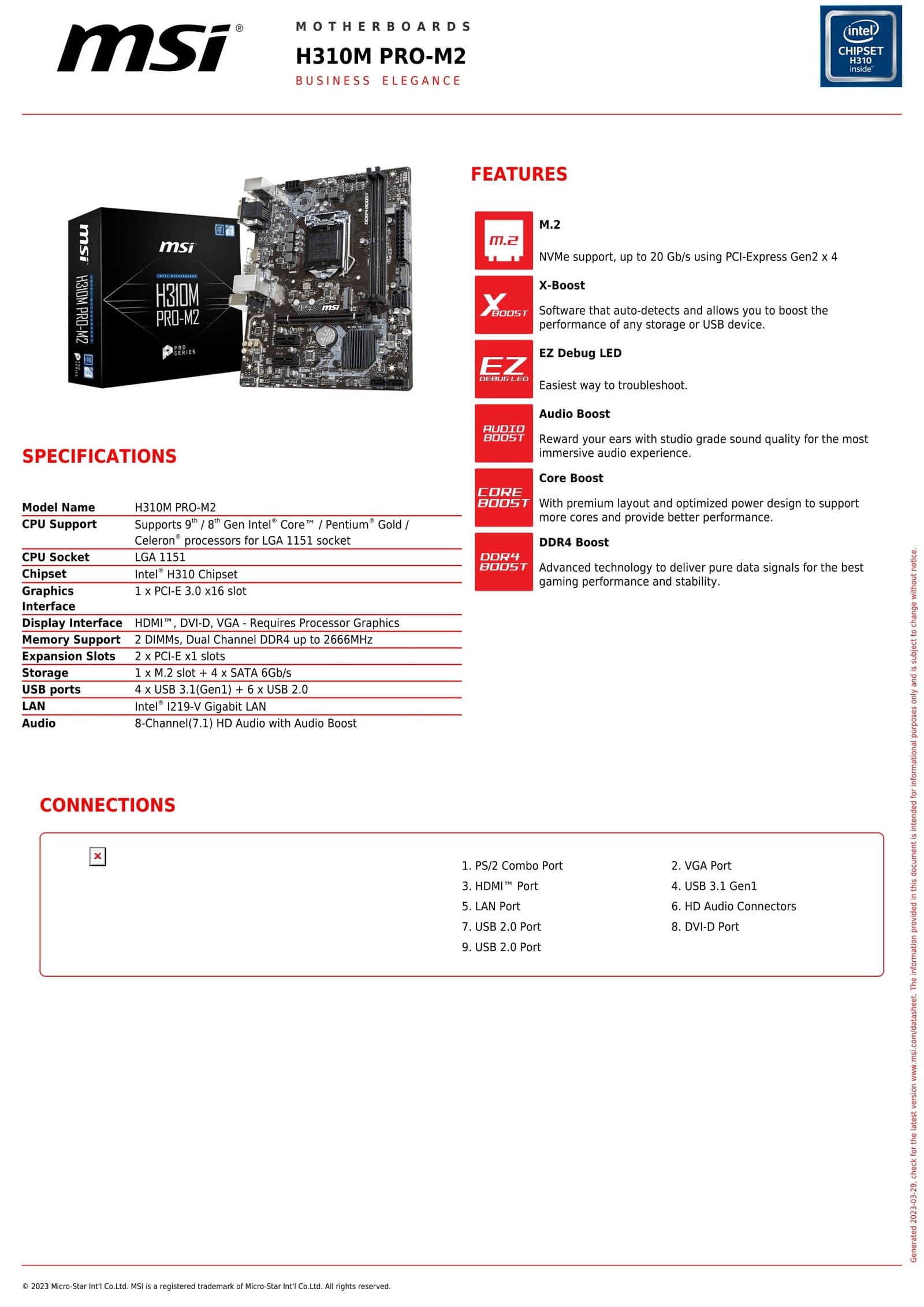

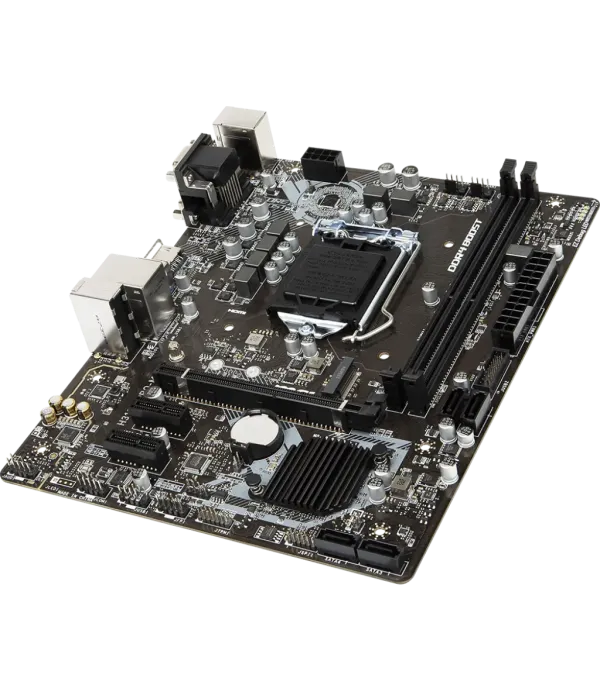

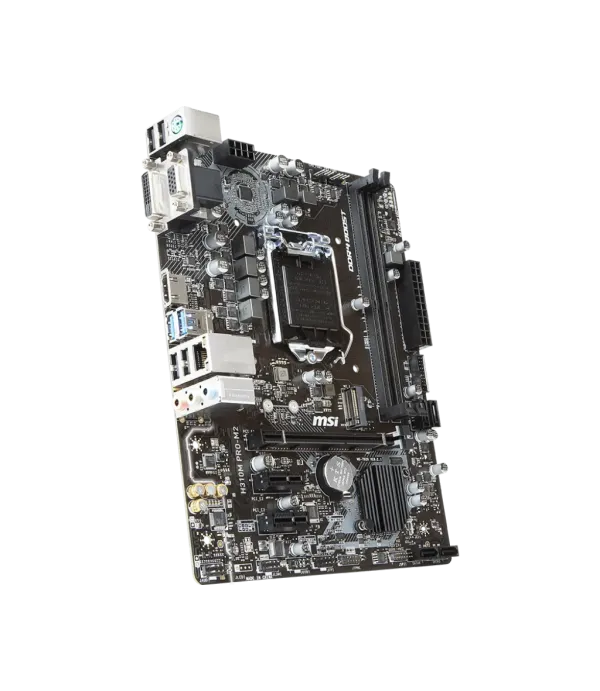

MSI H310M PRO-M2

Processor Support: Supports 9th / 8th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1151 socket

Chipset: Intel® H310 Chipset

Memory:

• 2 x DDR4 memory slots, supporting up to 32GB
• Supports DDR4 2666/2400/2133 MHz
• Dual-channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots:

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

Onboard Graphics:

• 1 x VGA port, supports up to 2048x1536@50Hz
• 1 x DVI-D port, supports up to 1920x1200@60Hz
• 1 x HDMI™ 1.4 port, supports up to 4096x2160@30Hz
• *No display support with processors ending in "F"
• Supports up to 2 displays simultaneously

Storage:

• 4 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M), supports PCIe 2.0 x4 and SATA 6Gb/s devices
• Supports 2242/2260/2280 storage devices

USB Ports:

• 4 x USB 3.1 Gen1 ports (2 rear Type-A, 2 via internal connectors)
• 6 x USB 2.0 ports (4 rear Type-A, 2 via internal connectors)

Audio: Realtek® ALC887 Codec, 7.1-Channel High Definition Audio

LAN: Intel® I219-V Gigabit LAN controller

Internal Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports 2 ports)
• 1 x USB 2.0 connector (supports 2 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

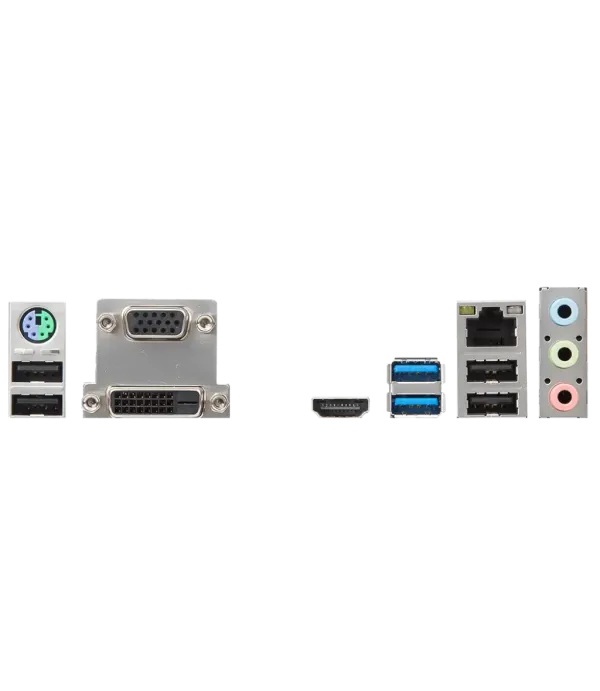

Back Panel Ports:

• PS/2 Combo Port
• 1 x VGA Port
• 1 x HDMI™ Port
• 2 x USB 3.1 Gen1 Ports
• 1 x LAN Port
• HD Audio Connectors
• 4 x USB 2.0 Ports
• 1 x DVI-D Port

Dimensions: 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm), m-ATX Form Factor

Mounting: 6 mounting holes

Operating System: Support for Windows® 10 64-bit
