B850 GAMING PLUS WIFI

The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

B850 GAMING PLUS WIFI Specifications

Processor Support

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory

• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance systems and non-stop experience

High-speed Connectivity

• 5G LAN with Full-speed Wi-Fi 7 Solution
• The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Lightning Fast Game Experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C

EZ DIY Features

• EZ M.2 Shield Frozr II
• EZ M.2 Clip II
• EZ PCIe Clip II
• EZ Antenna

Audio

Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

Realtek® ALC897, 7.1-Channel High Definition Audio.

Chipset

AMD B850

Slots

• 4x PCI-E x16 slots
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 3x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
• 4x SATA 6Gbps ports
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Rear), 4x USB 2.0 (Front)
• 1x USB 5Gbps Type-A (Rear), 4x USB 5Gbps Type-A (Front)
• 1x USB 5Gbps Type-C (Front)
• 1x USB 10Gbps Type-A (Rear)
• 2x USB 10Gbps Type-C (Rear)

Wireless LAN & Bluetooth

• Wi-Fi 7 Solution
• Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps
• Bluetooth® 5.4

LED Features

• 4x EZ Debug LEDs

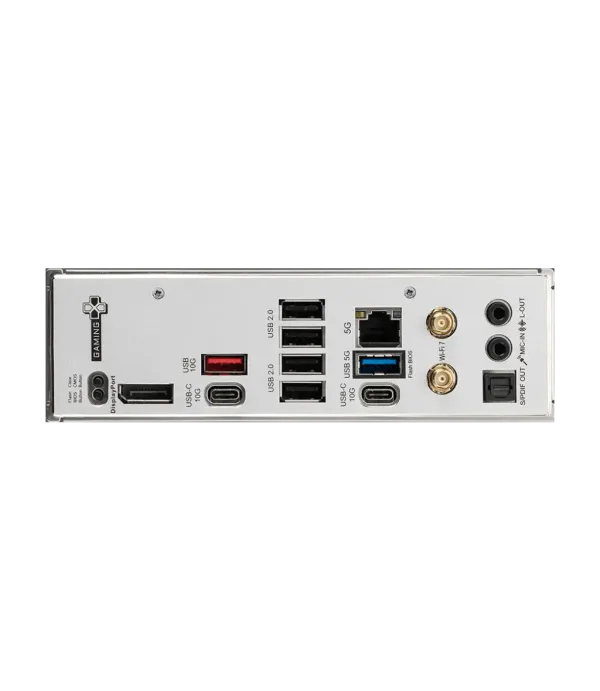

Back Panel Ports

• Clear CMOS Button
• 5G LAN
• Audio connectors
• Flash BIOS Button
• DisplayPort
• USB 10Gbps Type-C
• USB 5Gbps Type-A
• S/PDIF-OUT

Operating System

Support for Windows® 11 64-bit.
